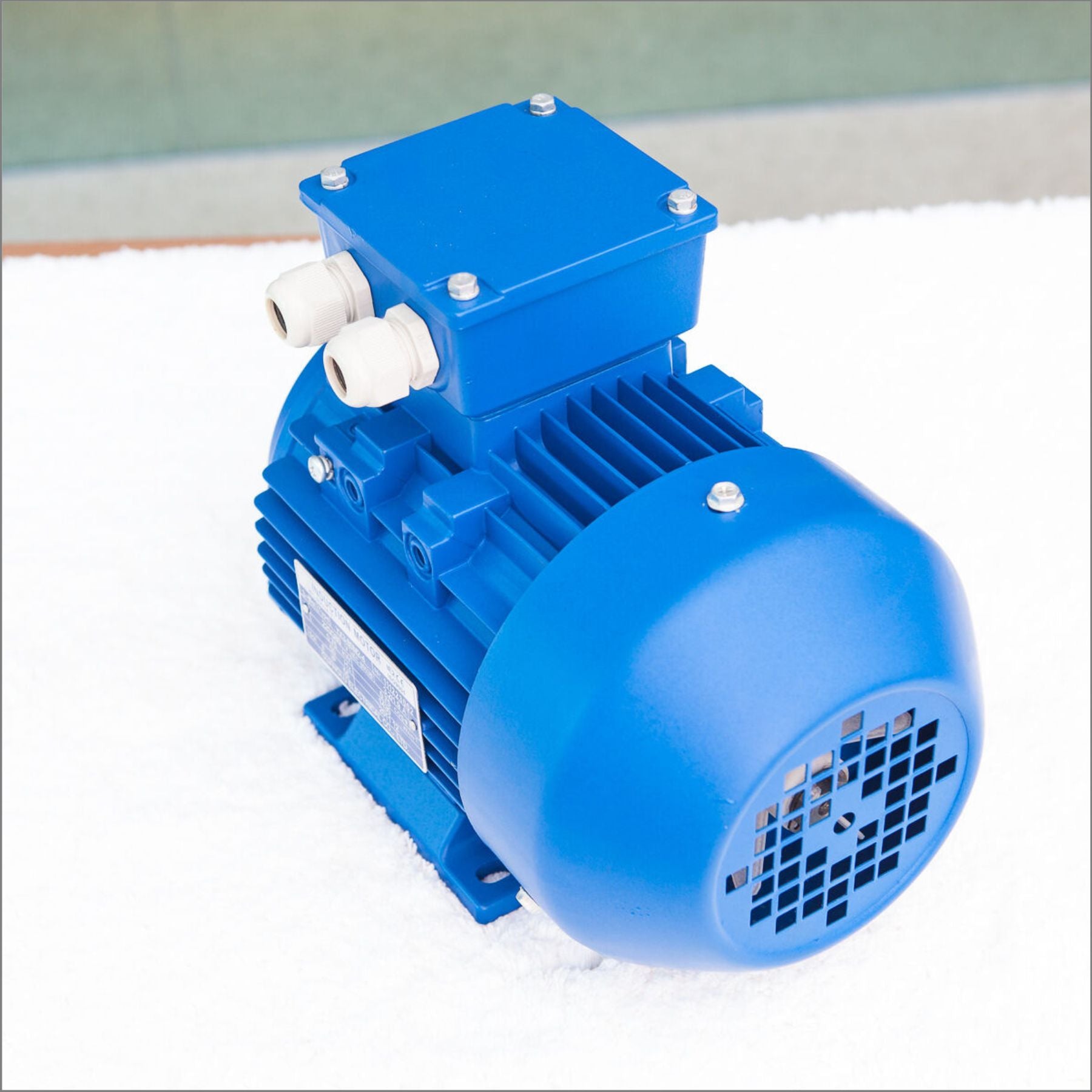

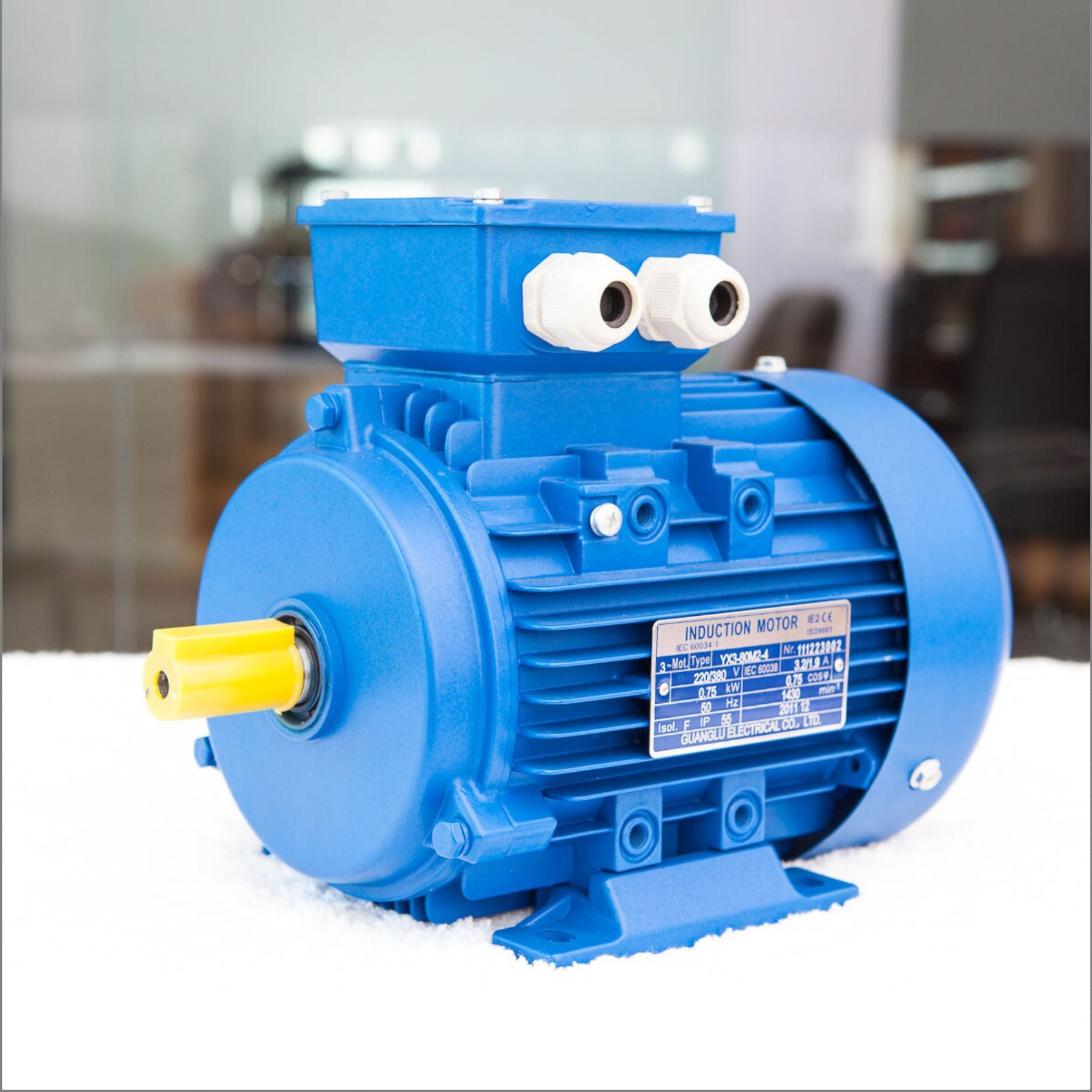

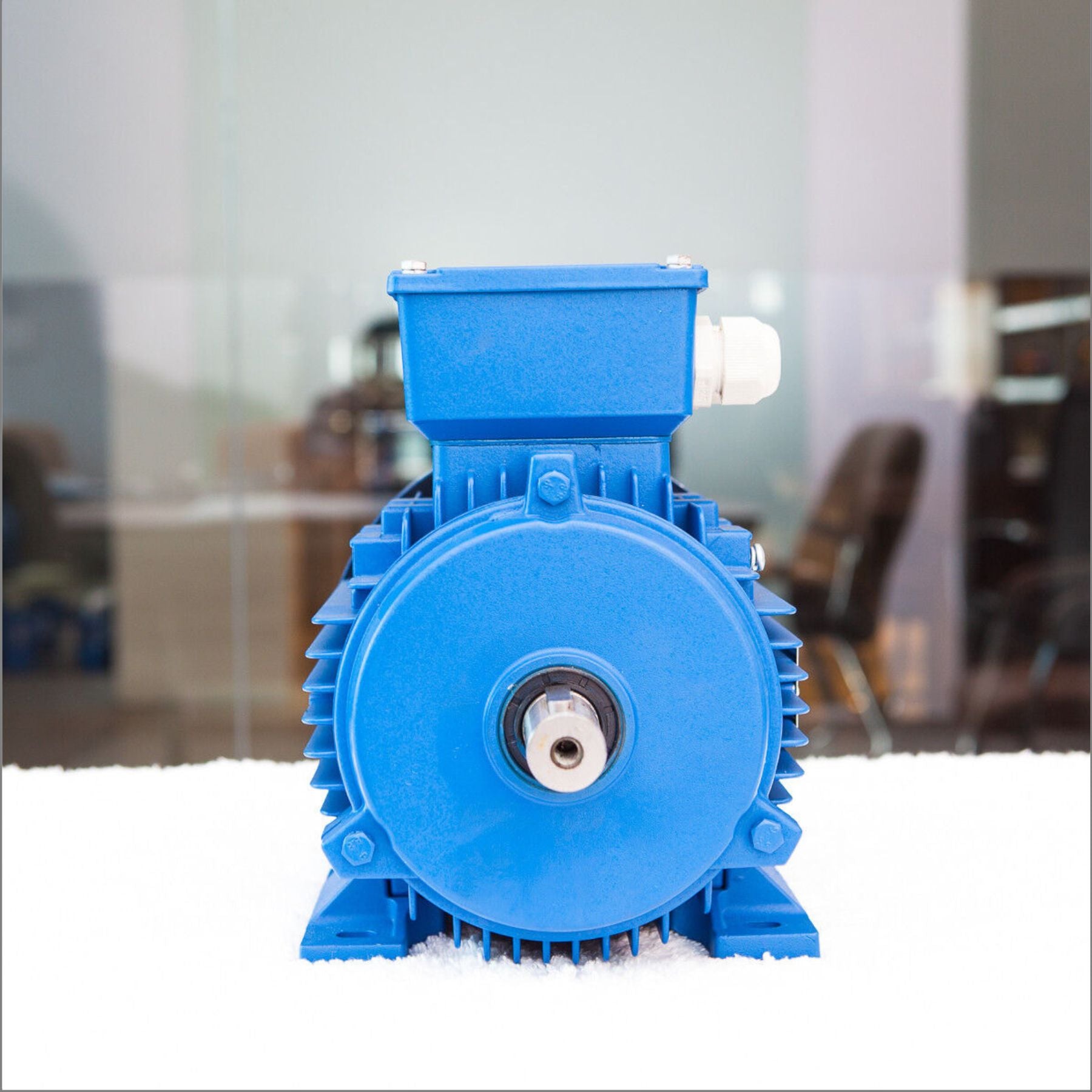

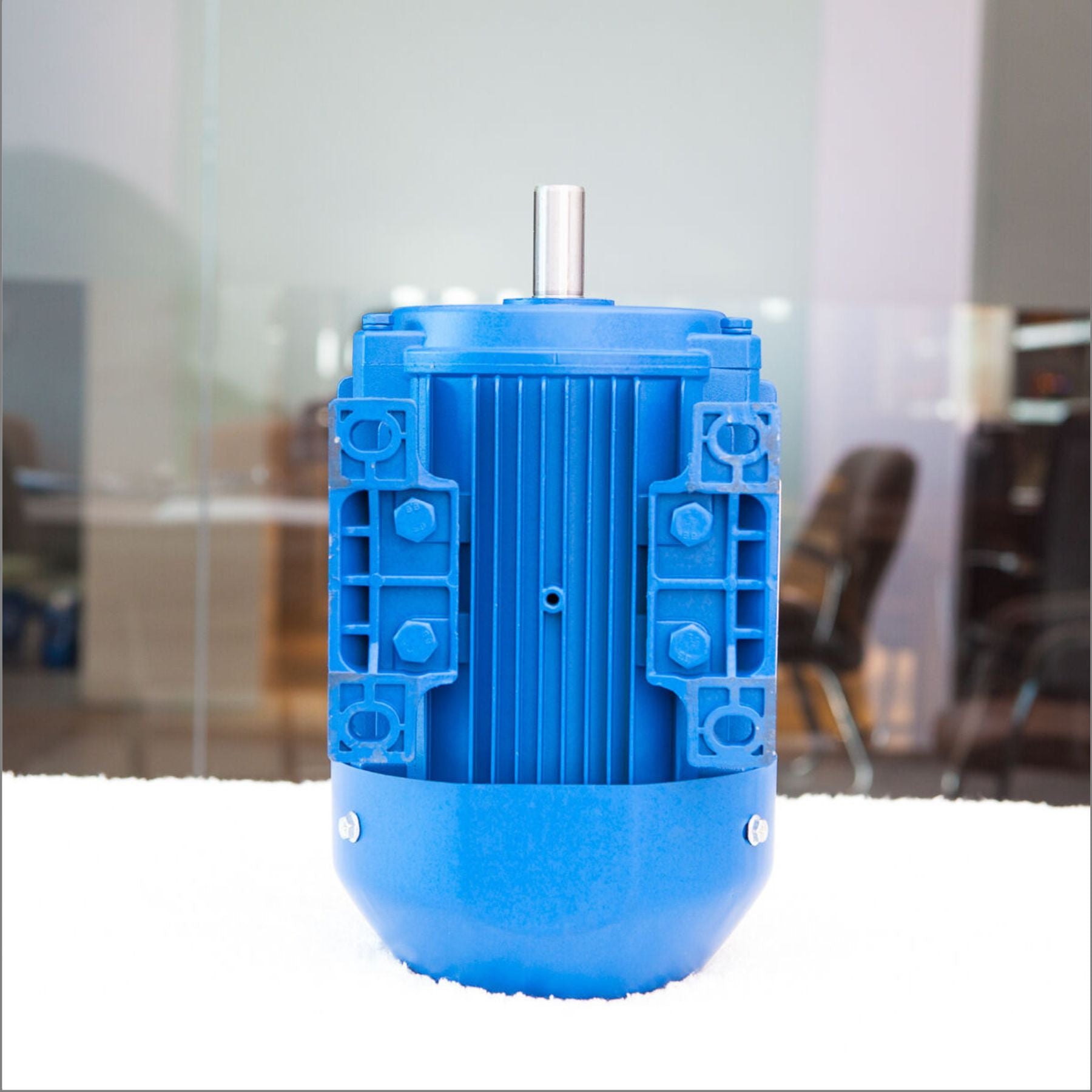

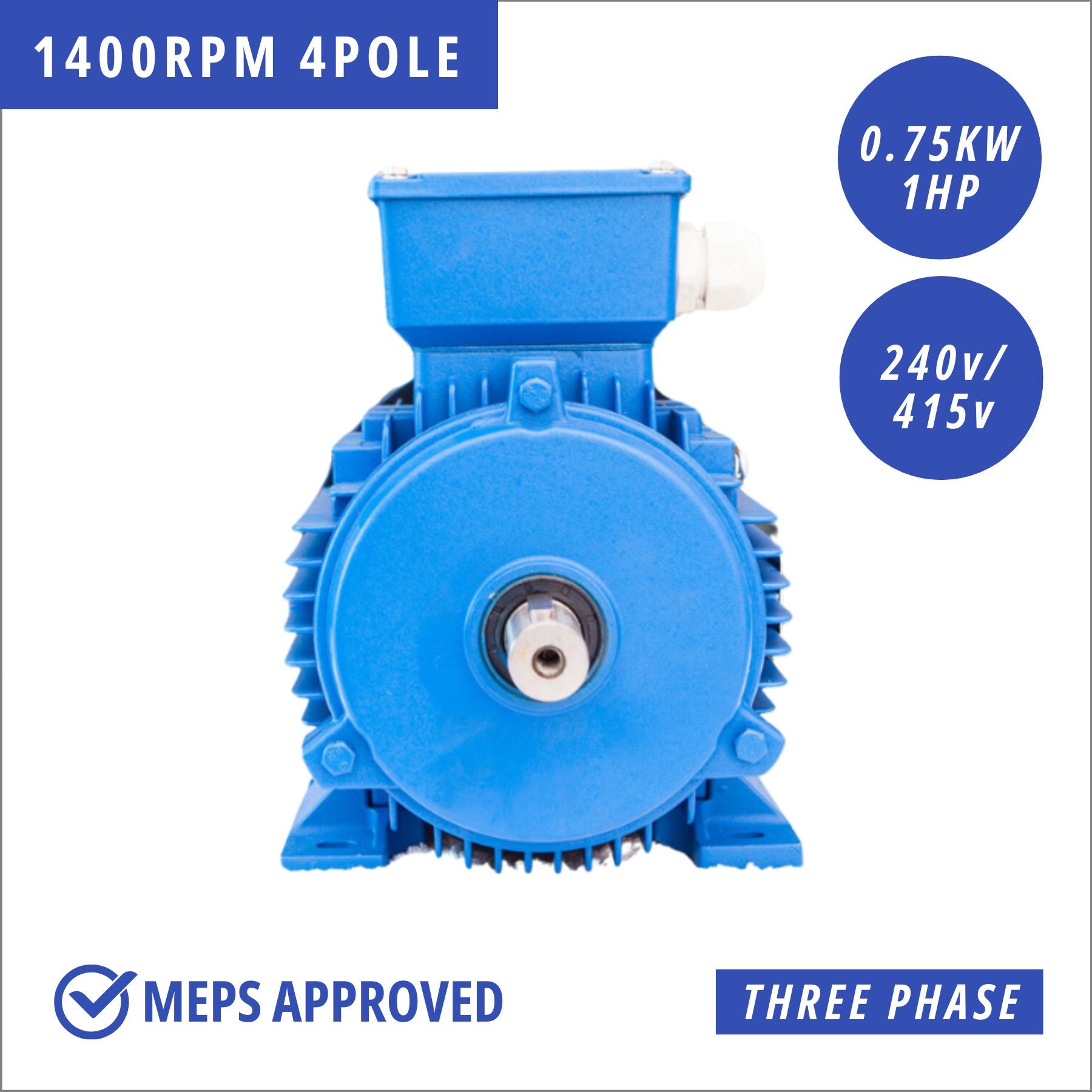

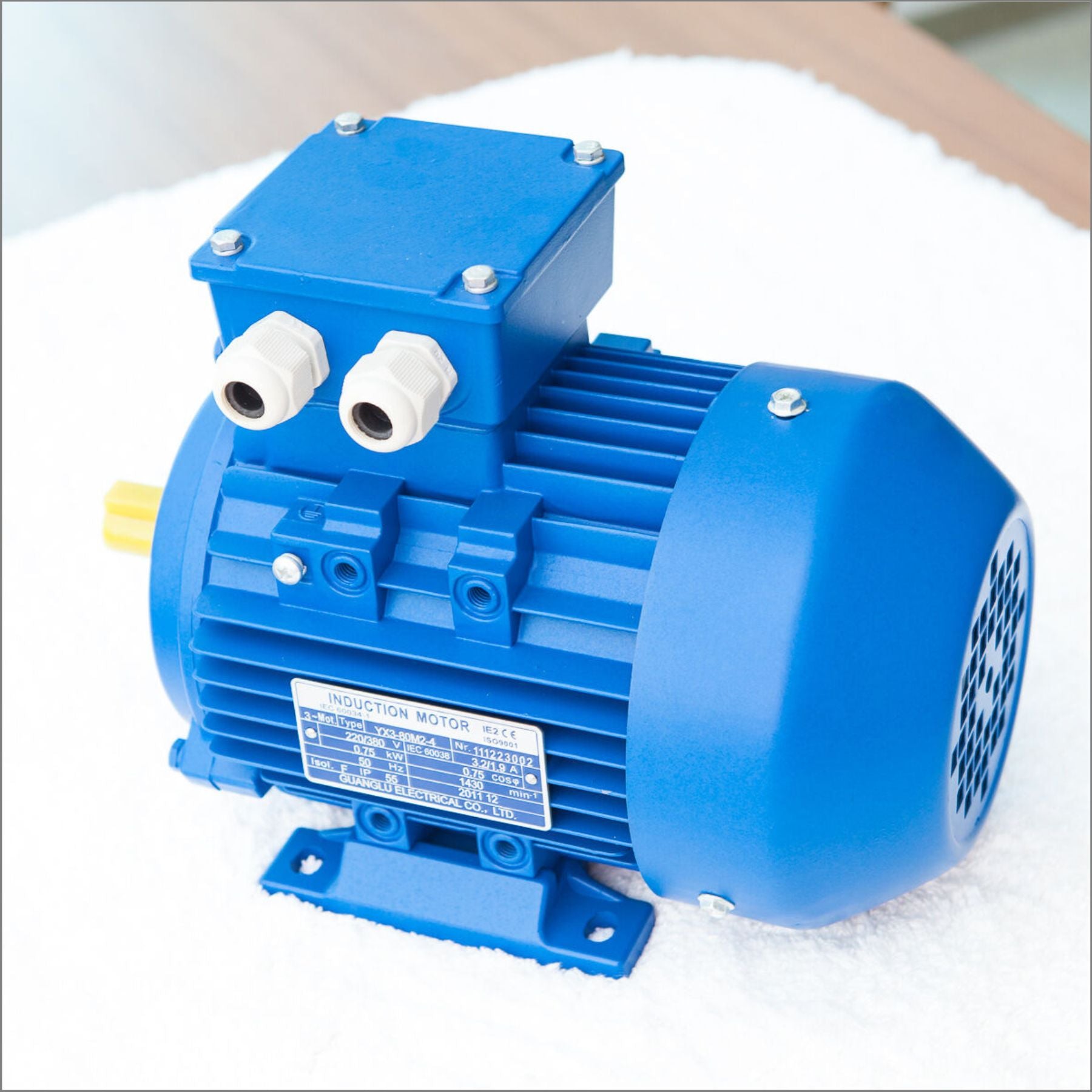

Three Phase 415v Inverter Electrical Motor 0.75kw 1HP 1400Rpm Shaft 5/8" or 16mm

Description:

• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Rated Load (kW): 0.75KW
• Full Load Amps: 1.89
• AC Frequency Rating: 50/60 Hz
• AC Phase: 3 Phase
• IEC Frame Size: 80
• Mounting Type: Base-Mounted, Flange-Mounted, Foot-Mounted
• IP Rating: IP55
• Reversible/Non-Reversible: Reversible
• Output Voltage: 240V/415V three phase
• Shaft Type: Keyed
• AC Motor Type: Induction/Asynchronous
• Inverter/Vector Duty Rating: Inverter Duty
• Current Type: AC
• Actual Rated Input Voltage: THREE PHASE 240V/415V
• Insulation Class: F (Max 155°C)
• MPN: Does Not Apply

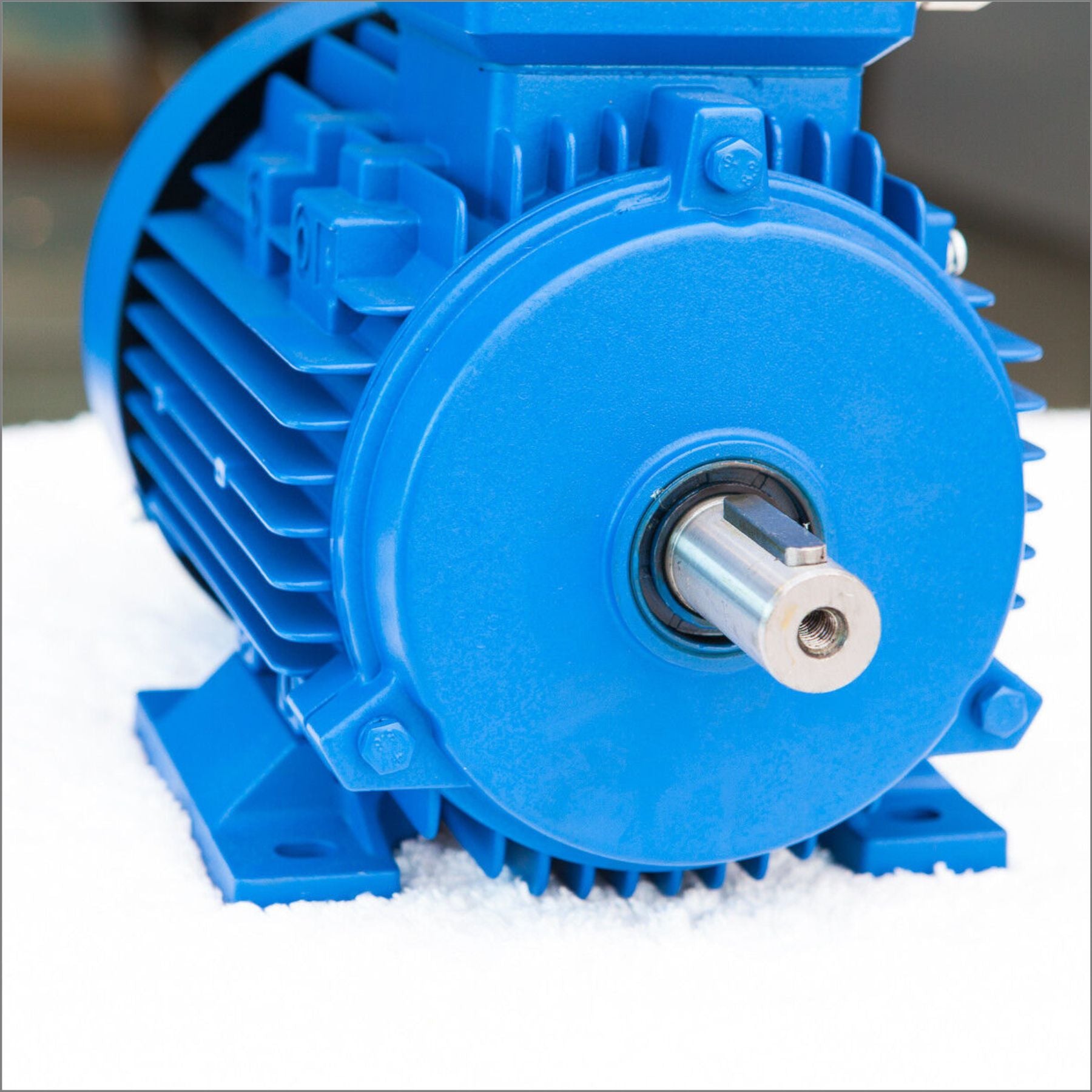

• Shaft Diameter: 5/8" OR 16MM Special Made
• Rated Load (HP): 1HP
• Nominal Rated Input Voltage: THREE PHASE 240V/415V
• Service Factor: 1.10
• Base RPM: 1420
• Three-phase: 415v
• Type: YX3-802-4 （TYPE 80）
• Speed: 4 Pole (1400rpm)
• Power: 0.75kw/1.0HP
• Shaft size: 16mm
• Voltage： Three phase 240V/415V
• Light weight
• Aluminium Alloy

Technical Data of YX3 SERIES

• Output: 0.75 kW
• Speed: 1430 r/min
• Amps: 1.85 A
• EFF: 82.3 %
• P.F.: 0.75 Cosφ
• LRT : 2.3 RLT
• LRA: 6.5 RLA
• BDT: 2.3 RLT
• Noise: 56 LwdB(A)
• Voltage: 415 V
