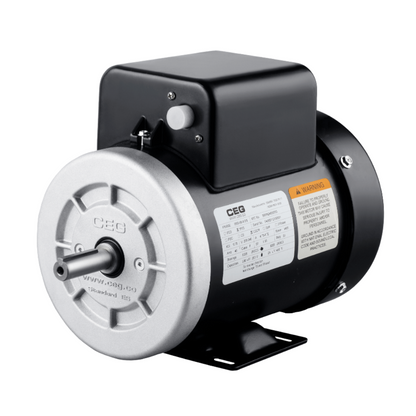

Single Phase NEMA Electric Motor 240V 0.75kW 1HP 1400rpm FRAME 56 1Ph CSCR 5/8"

Single Phase NEMA Electric Motor 240V 0.75kW 1HP 1400rpm FRAME 56 1Ph CSCR 5/8"

This 1HP Single Phase NEMA Electric Motor operates at 240V with 0.75kW power and 1400rpm speed. Featuring a FRAME 56 design and 1Ph CSCR configuration for enhanced energy efficiency, this motor is ideal for various industrial applications. The 5/8" shaft ensures compatibility with a wide range of machinery, offering reliable and smooth operation.

Description:

• Inverter/Vector Duty Rating: Inverter Duty
• IEC Frame Size: 56
• AC Frequency Rating: 50 Hz
• Rated Load (kW): 0.75
• Shaft Type: Keyed
• Shaft Diameter: 5/8"
• Insulation Class: F (Max 155°C)
• Current Type: AC
• Service Factor: 1.10
• Nominal Rated Input Voltage: 240 V
• Actual Rated Input Voltage: 240V
• NEMA Design Letter: Design B (General Purpose)
• Rated Load (HP): 1HP
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Base RPM: 1400
• AC Motor Type: Induction/Asynchronous
• Mounting Type: Base-Mounted, Flange-Mounted, Foot-Mounted
• Reversible/Non-Reversible: Reversible
• IP Rating: IP44
• AC Phase: Single Phase
• Single phase: 240V

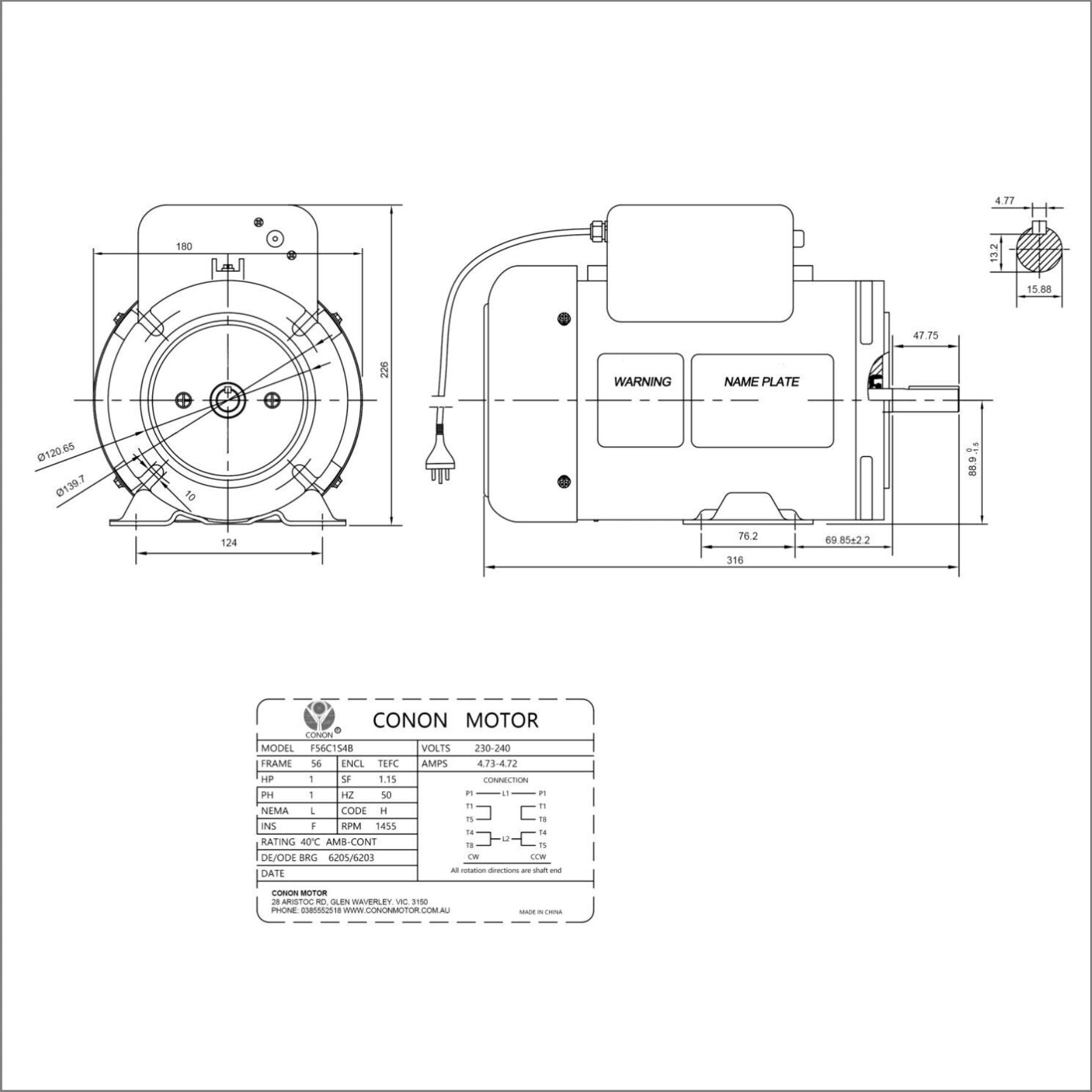

• Type:F56C1S4B
• Power: 0.75kw/1hp
• Speed: 4 Pole (1400rpm)
• Frame: 56
• Shaft: 16mm
