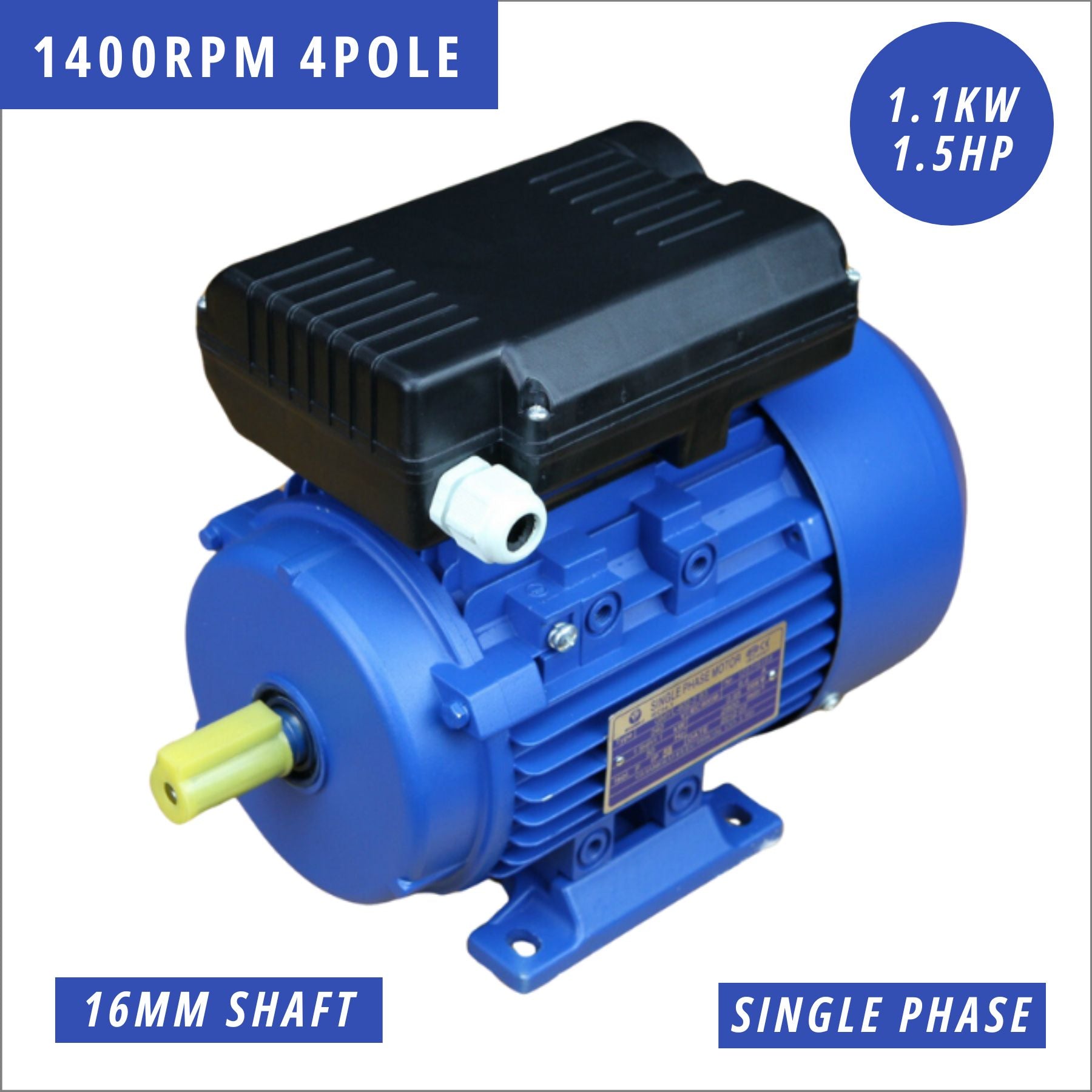

Single Phase 240v Dual Caps Lathe Pres 1.1kw 1.5HP 1400rpm 5/8" 16mm Shaft Motor

Description:

• Full Load Amps: 7.3
• Rated Load (HP): 1 1/2
• AC Frequency Rating: 50 Hz
• Base RPM: 1400RPM

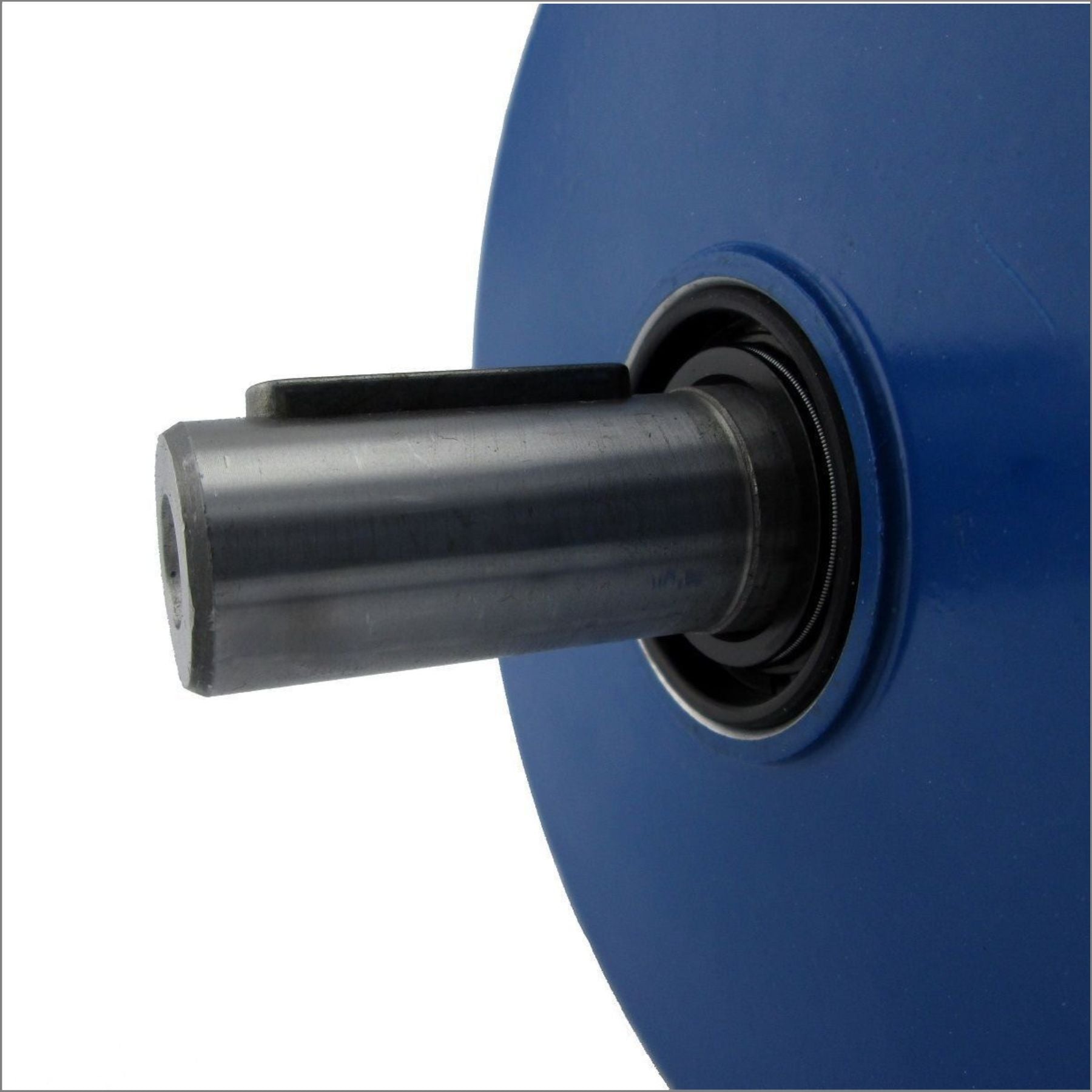

• Shaft Type: Keyed
• Shaft Diameter: 5/8" OR 16MM
• Insulation Class: F (Max 155°C)
• Brand: CONON
• Current Type: AC
• IP Rating: IP55
• Nominal Rated Input Voltage: 240V
• Protection Against Solids: Dust Protected
• Actual Rated Input Voltage: 240V
• Inverter/Vector Duty Rating: Not Inverter/Vector Duty Rated
• IEC Frame Size: 90
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Rated Load (kW): 1.1KW
• AC Motor Type: Induction/Asynchronous
• MPN: 1019992
• Mounting Type: Foot-Mounted
• Reversible/Non-Reversible: Reversible
• Protection Against Liquids: Spraying Water
• Service Factor: 1.10
• AC Phase: Single Phase
• Single phase: 240V
• Type: GMYL-1.1KW-4
• Power: 1.1KW/1.5HP
• Speed: 4 Pole (1400rpm)
• Maximum amperage draws: 7.3
• Shaft size: 16mm OR 5/8"
• Light weight
