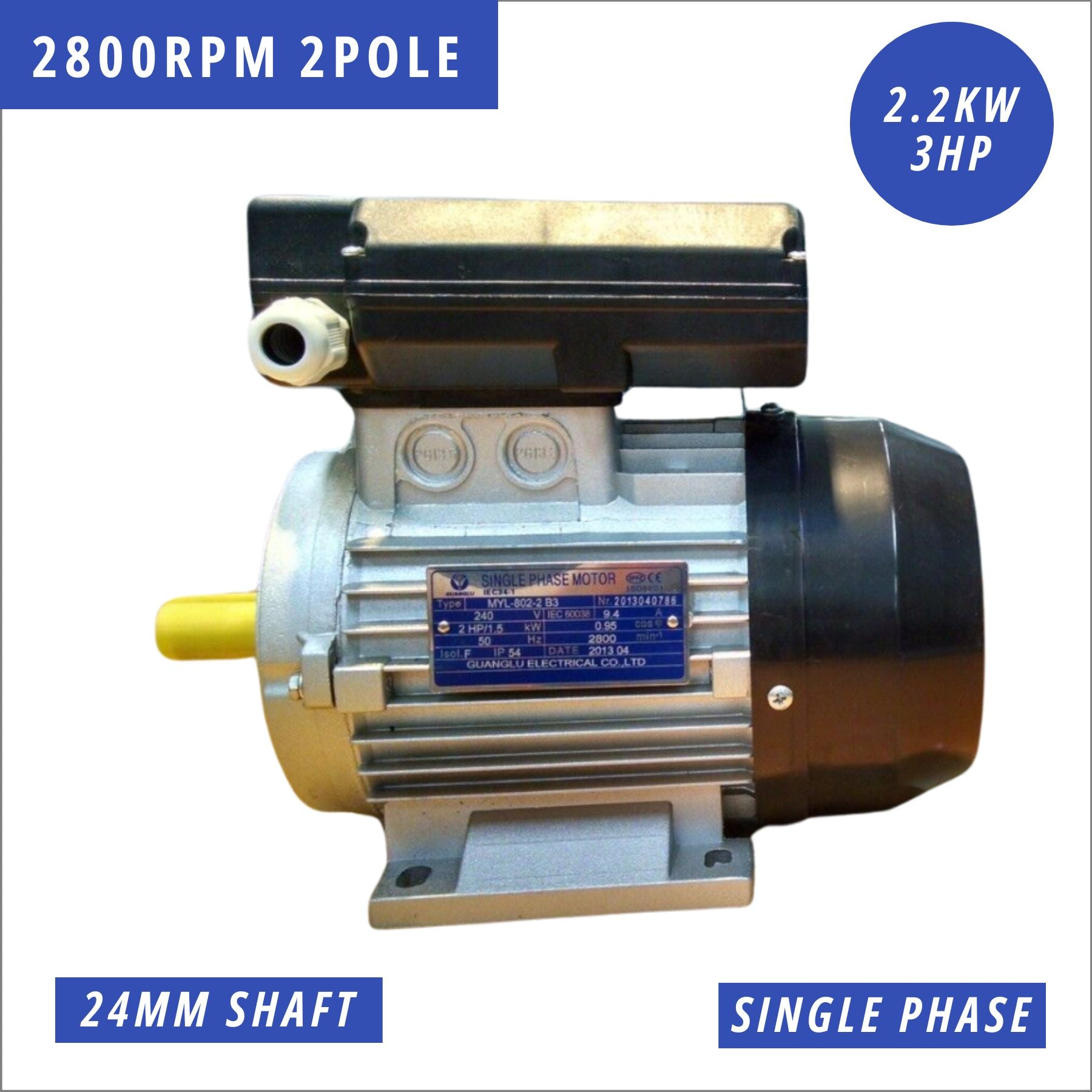

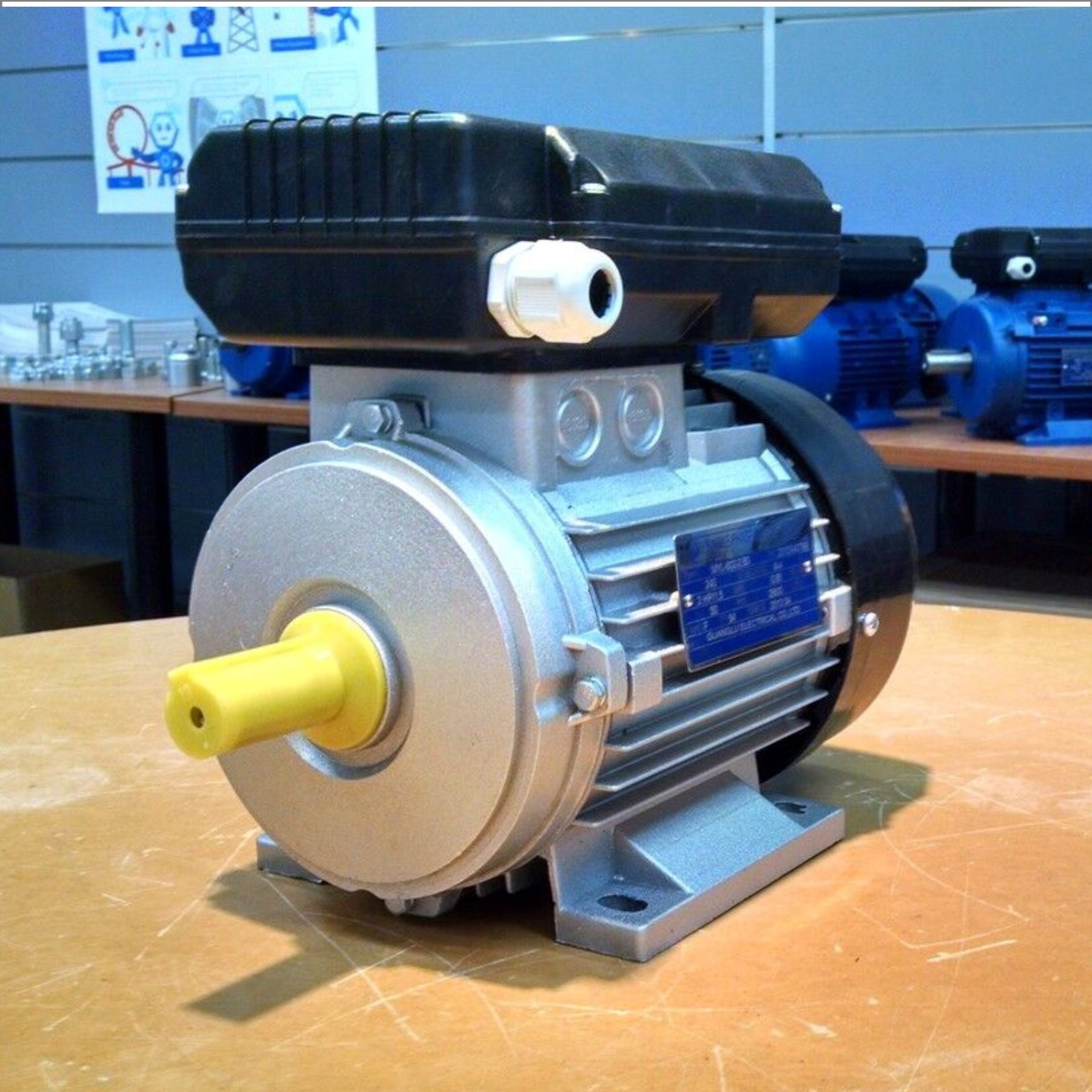

Single Phase 240v Dual Caps 2.2kw 3HP 2800pm 24mm Shaft Reverse Compressor Motor

Description:

• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Rated Load (kW): 2.2KW
• Full Load Amps : 13.7A
• Current Type: AC
• Actual Rated Input Voltage: 240V
• Insulation Class: F (Max 155°C)

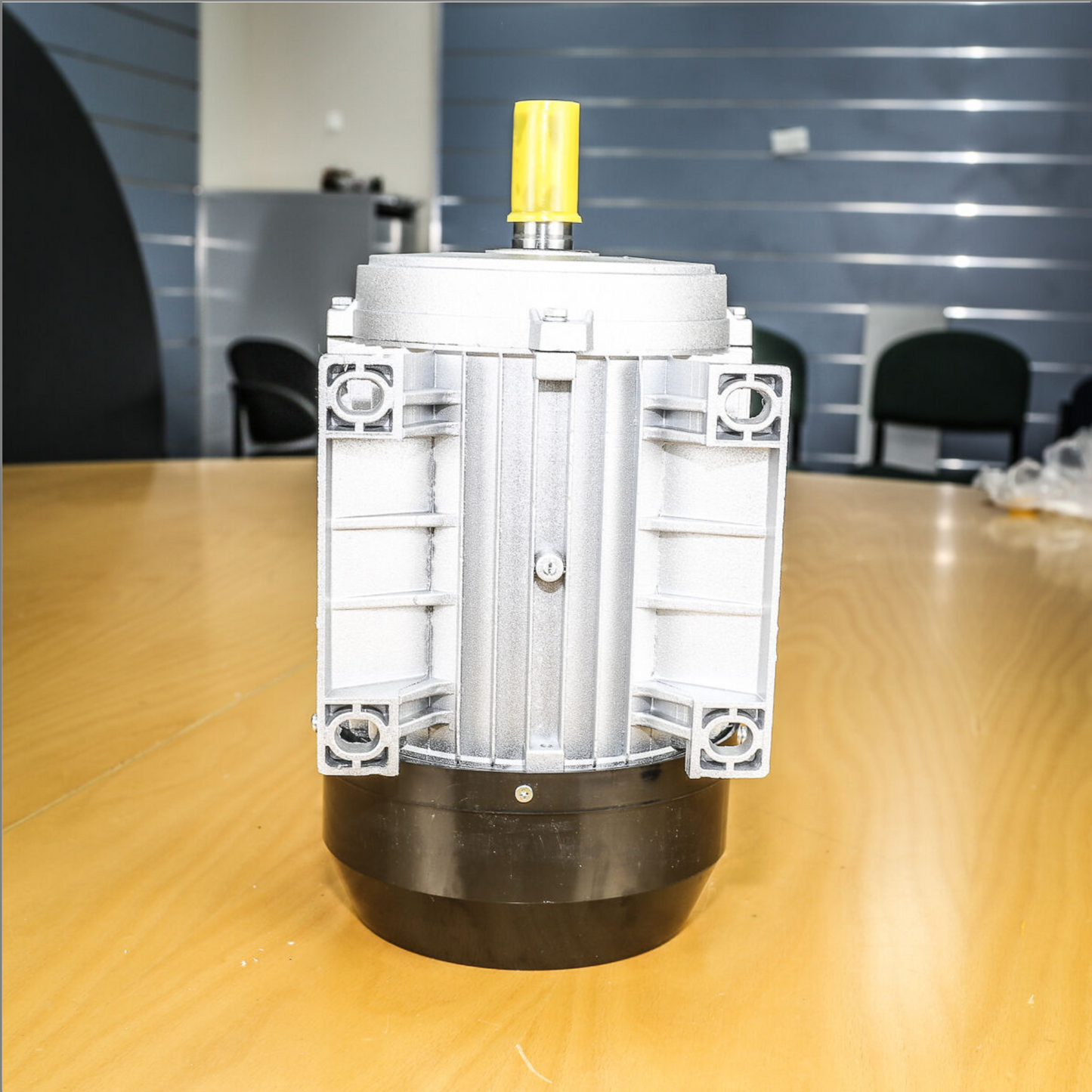

• Mounting Type: Base-Mounted, Flange-Mounted, Foot-Mounted
• IP Rating: IP56

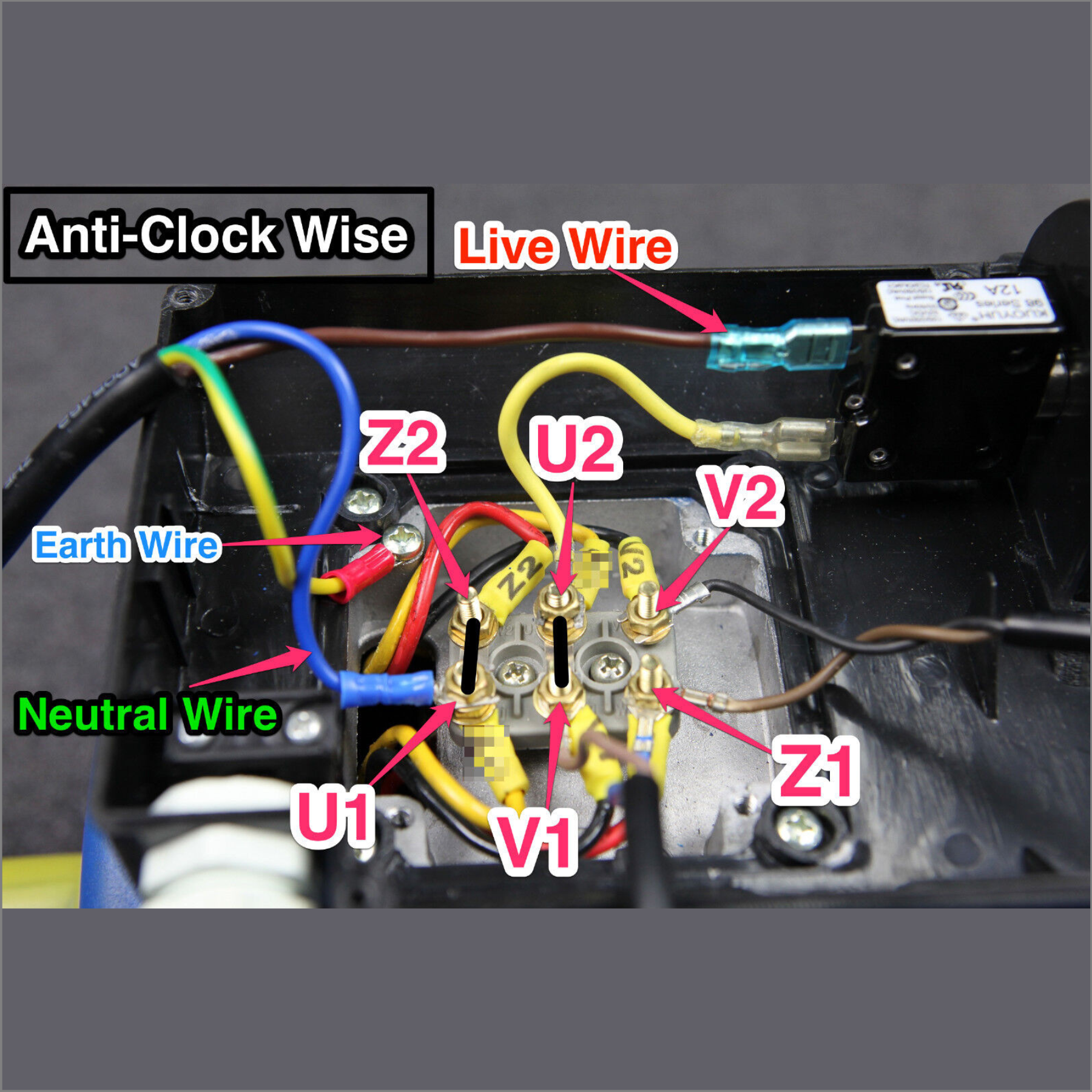

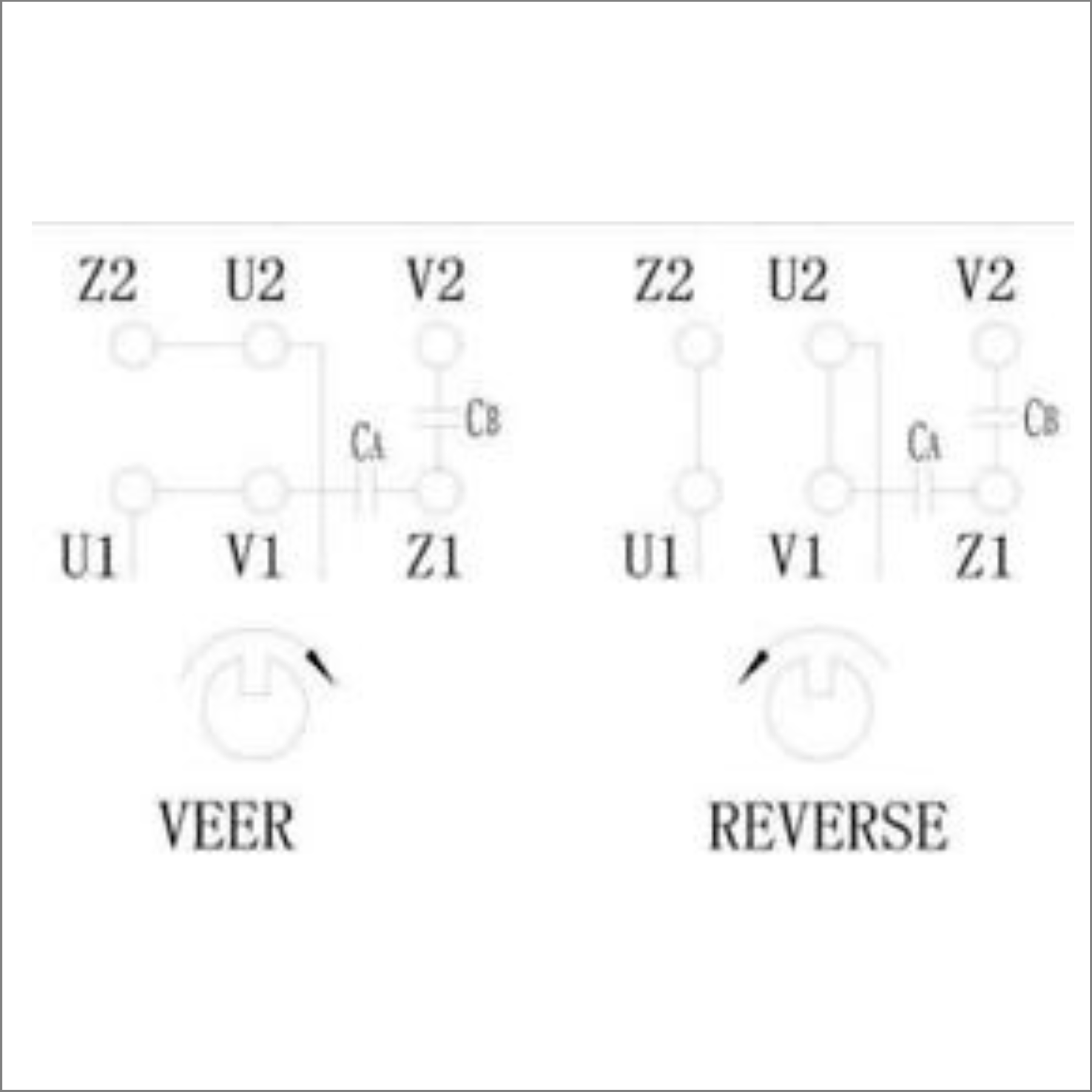

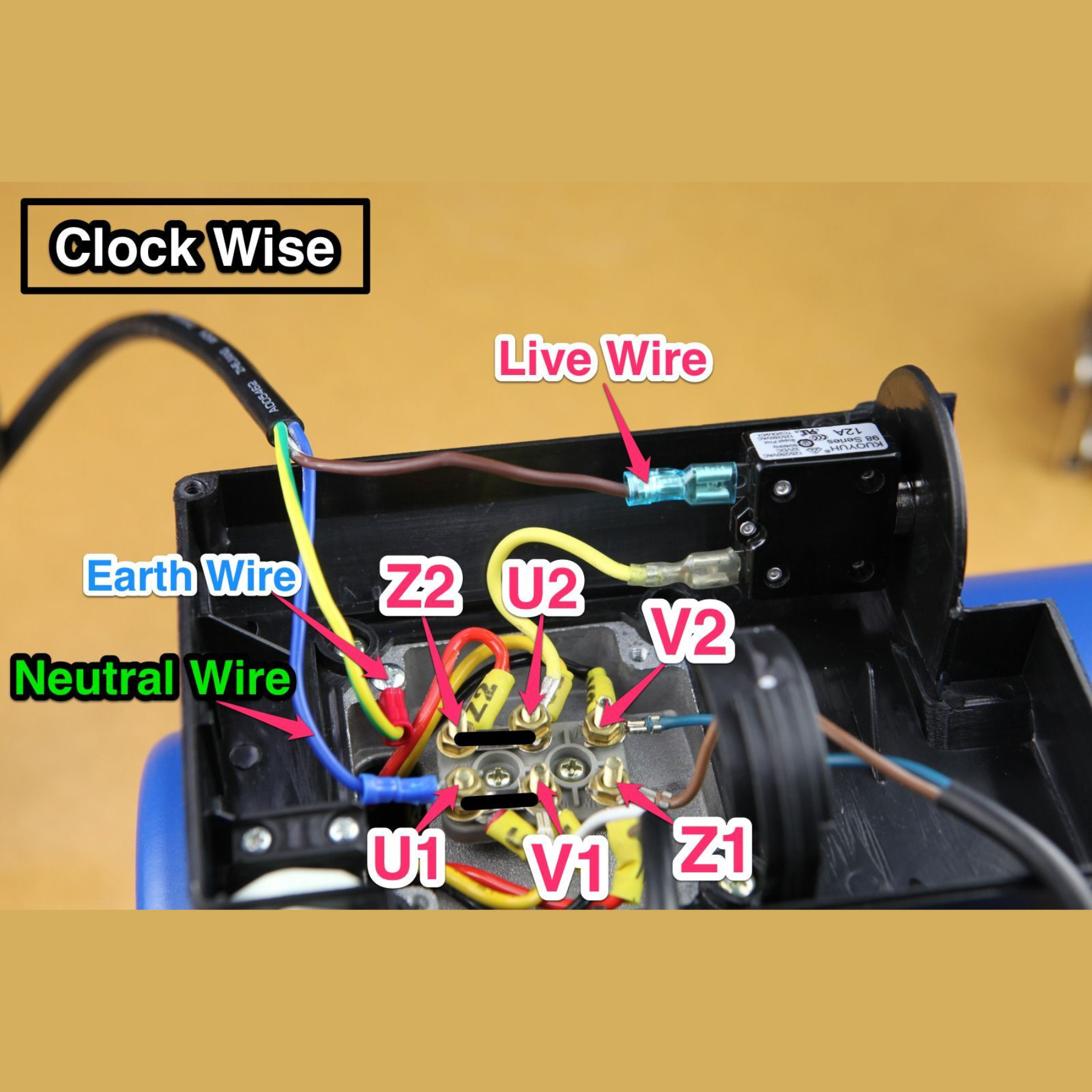

• Reversible/Non-Reversible: Reversible
• Shaft Type: Keyed
• AC Motor Type: Induction/Asynchronous
• Starting/Locked Rotor Torque: 1.7
• Inverter/Vector Duty Rating: Not Inverter/Vector Duty Rated
• AC Frequency Rating: 50/60 Hz
• AC Phase: Single Phase
• IEC Frame Size: 90
• Rated/Full-Load Torque: 8.7NM
• Shaft Diameter: 24MM
• Rated Load (HP): 3HP
• Nominal Rated Input Voltage: 240 V
• Service Factor: 1.10
• Base RPM: 2850RPM
• Single phase: 240V
• Type: GMYL-2.2KW-2
• Power: 2.2KW/3HP
• Speed: 2 Pole (2800rpm)
• Maximum amperage draws: 13.7
• Shaft size: 24mm
• Light weight
