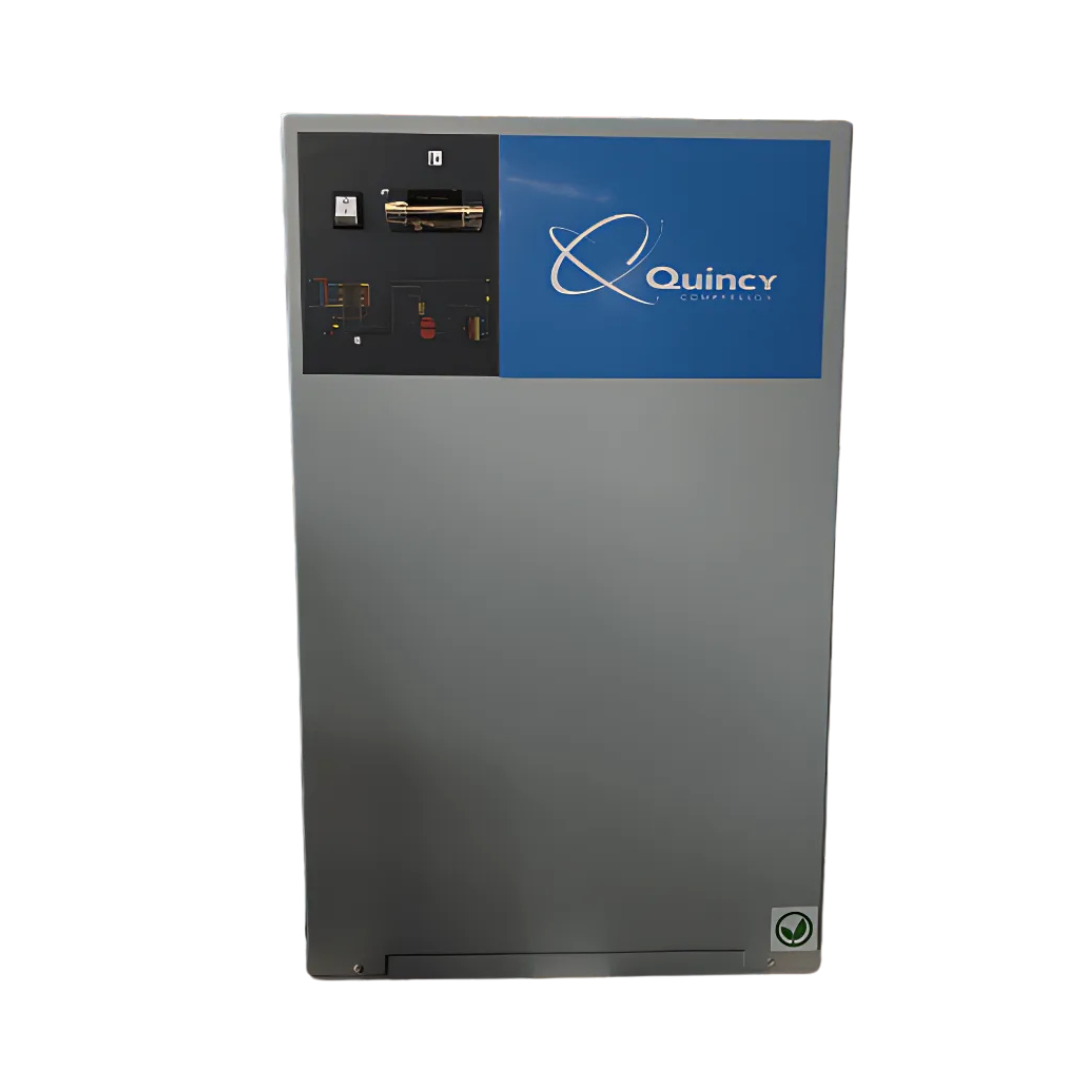

Refrigerated Air Dryer 495CFM Industrial Grade Moisture Removal System

The Refrigerated Air Dryer 495CFM is engineered to deliver superior moisture removal, preventing rust, corrosion, and contamination in compressed air systems. Designed for industrial applications, spray painting, powder coating, CNC machining, and manufacturing, this high-efficiency air dryer ensures consistent dry air output, improving the lifespan and performance of your tools and equipment.

Using advanced refrigeration technology, this air dryer efficiently removes water vapor, maintaining a stable dew point to prevent condensation buildup. With its heavy-duty construction and energy-efficient operation, it is an essential addition to any compressed air system.

Design Characteristics

• Unique three-in-one plate type heat exchanger design, compact structure, high heat transfer efficiency. Compare to traditional shell tube heat exchanger, unit heat transfer area enlarges 5 to 10 times.
• High strength aluminum alloy and stainless steel design which is small and light.
• Imported refrigerated valve, compressor is Panasonic.
• Economic auto drain.
• Sensitive and reliable instrument control components

Specification:

• Working Pressure: 0.7-1.3MPa
• Rated Capacity: 14.0 M3/min
• Refrigerant: R134a
• Max Inlet Temperature: 50°C
• Maximum Ambient Temperature: 35°C
• Pressure Dew Point: 3~10°C
• Voltage: 230V / 1Ph / 50Hz
• Dimension: 1050*660*1130
• Net weight: 105KG
