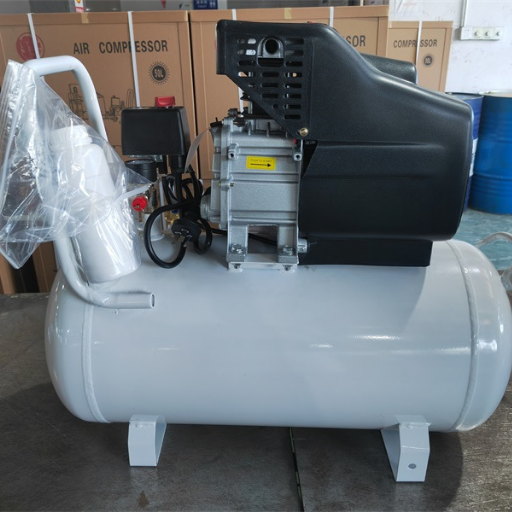

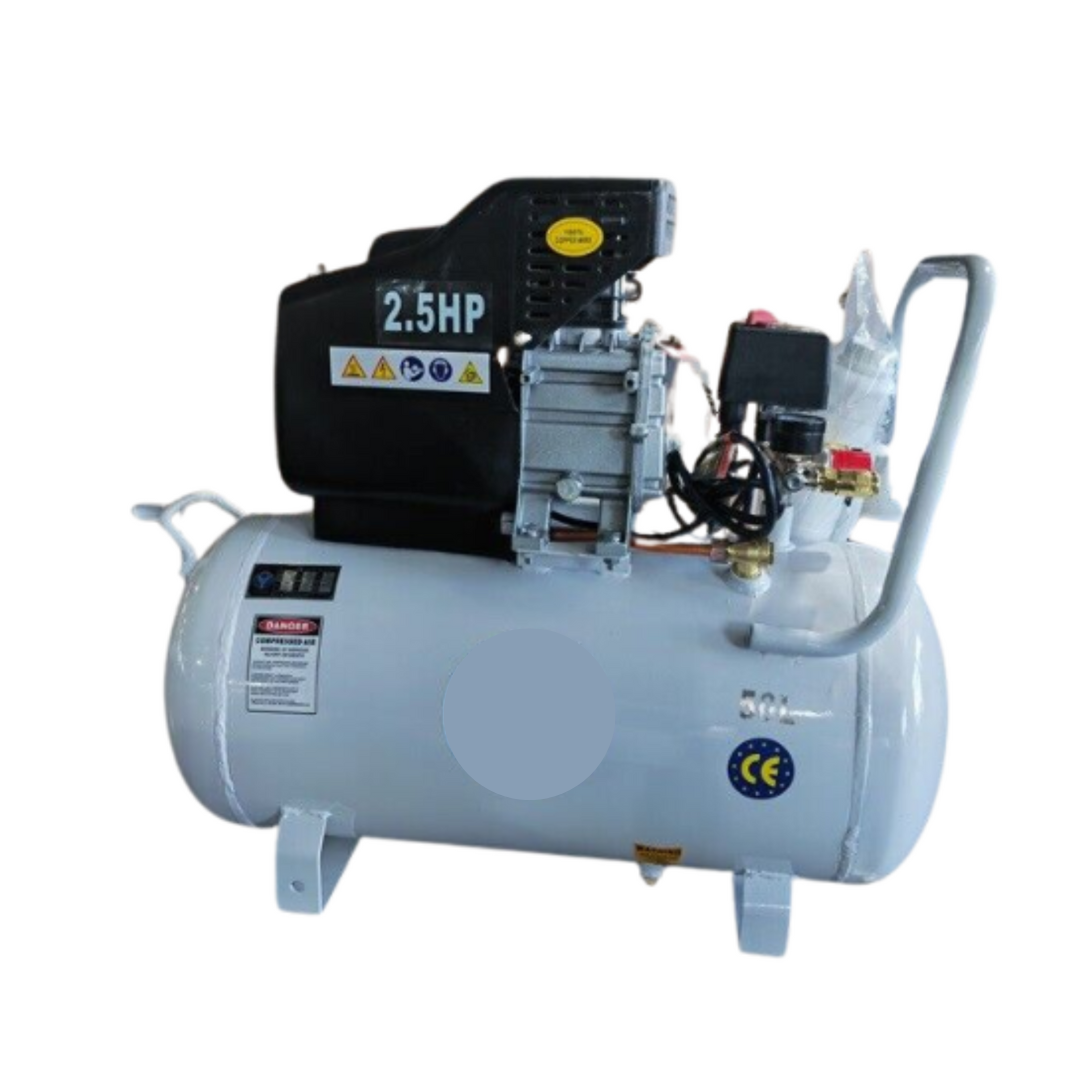

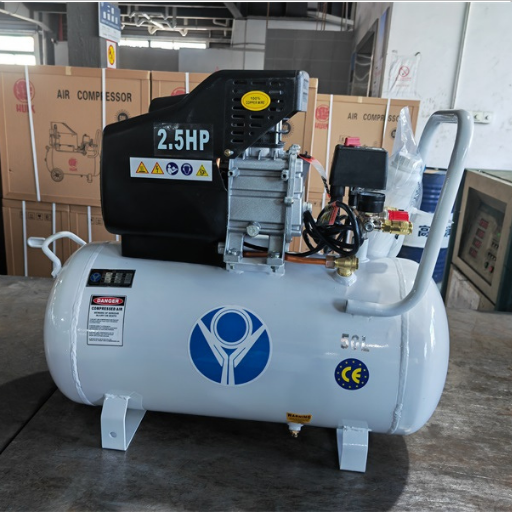

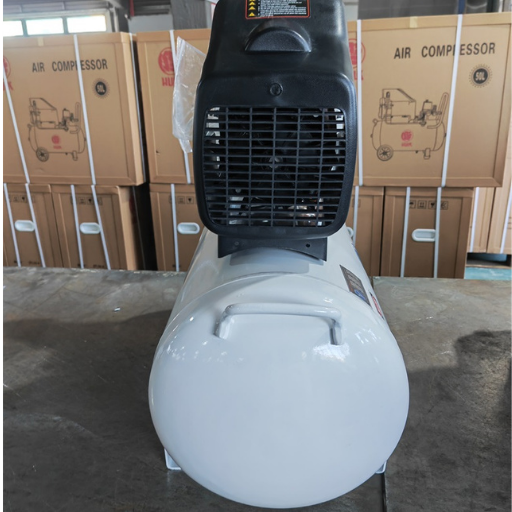

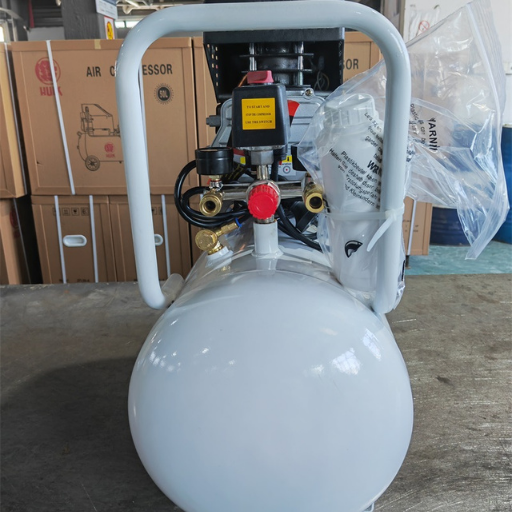

Piston Air Compressor 6.8CFM 192L 50L Tank 8BAR 240V 1.85KW 2.5HP 115PSI

Description

• Heavy duty “close grain” cast iron construction.
• Guarding meets Occupational Health and Safety Standards
• Capacitor start/Capacitor run electric motor
• Full range of spare parts
• Designed for continious duty
• Large canister intake filters with replaceable filter elements
• Deep fined cast iron cylinders. cooler tubes ensuring superior heat dissipation for higher operating efficiency.
• Aero-dynamically designed fan with large blades for higher air flow
• Two rubber tyred wheels for easy handling and manoeuvrabilit
• High-efficiency reed valves for maximum performance

Specification

• FAD: 192L/MIN FAD
• Pump drive: Double V section A type belt wheel
• Pump RPM: 2850RPM
• Motor Power: 1.85 KW/2.5HP
• Motor RPM: 2850RPM
• Pressure: 115 PSI / 8Bars
• Tank size (L):50
• Condor MDR1/11 EV1S Pressure Switch installed
• Packaging dimensions: 700 X 320 X 650
• Gross weight: 28 KG
• Recommended oil; 15W40W
