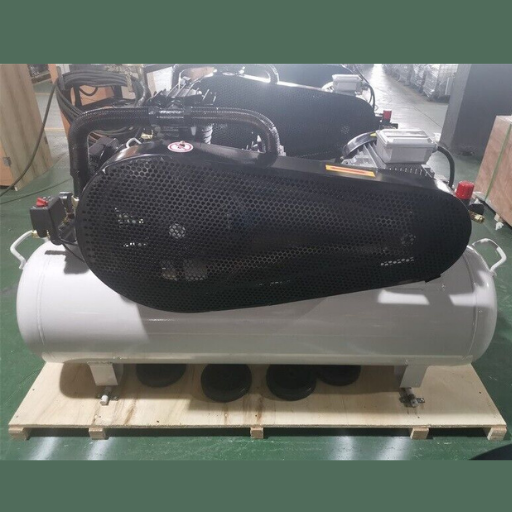

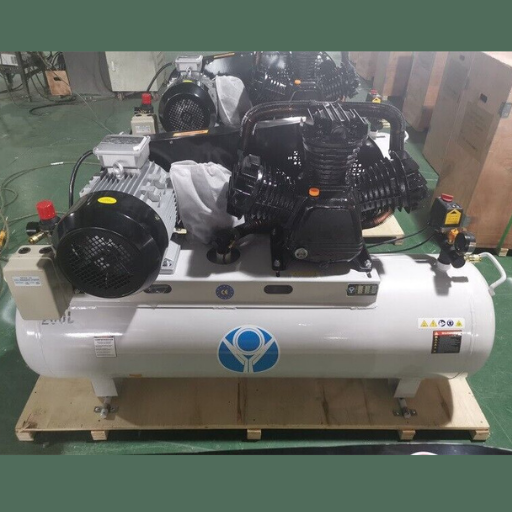

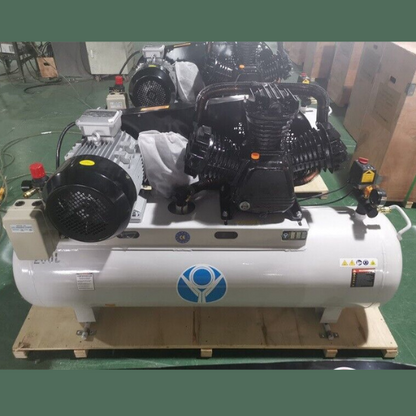

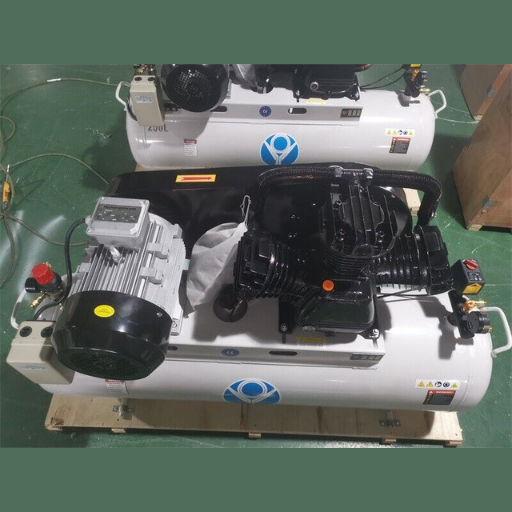

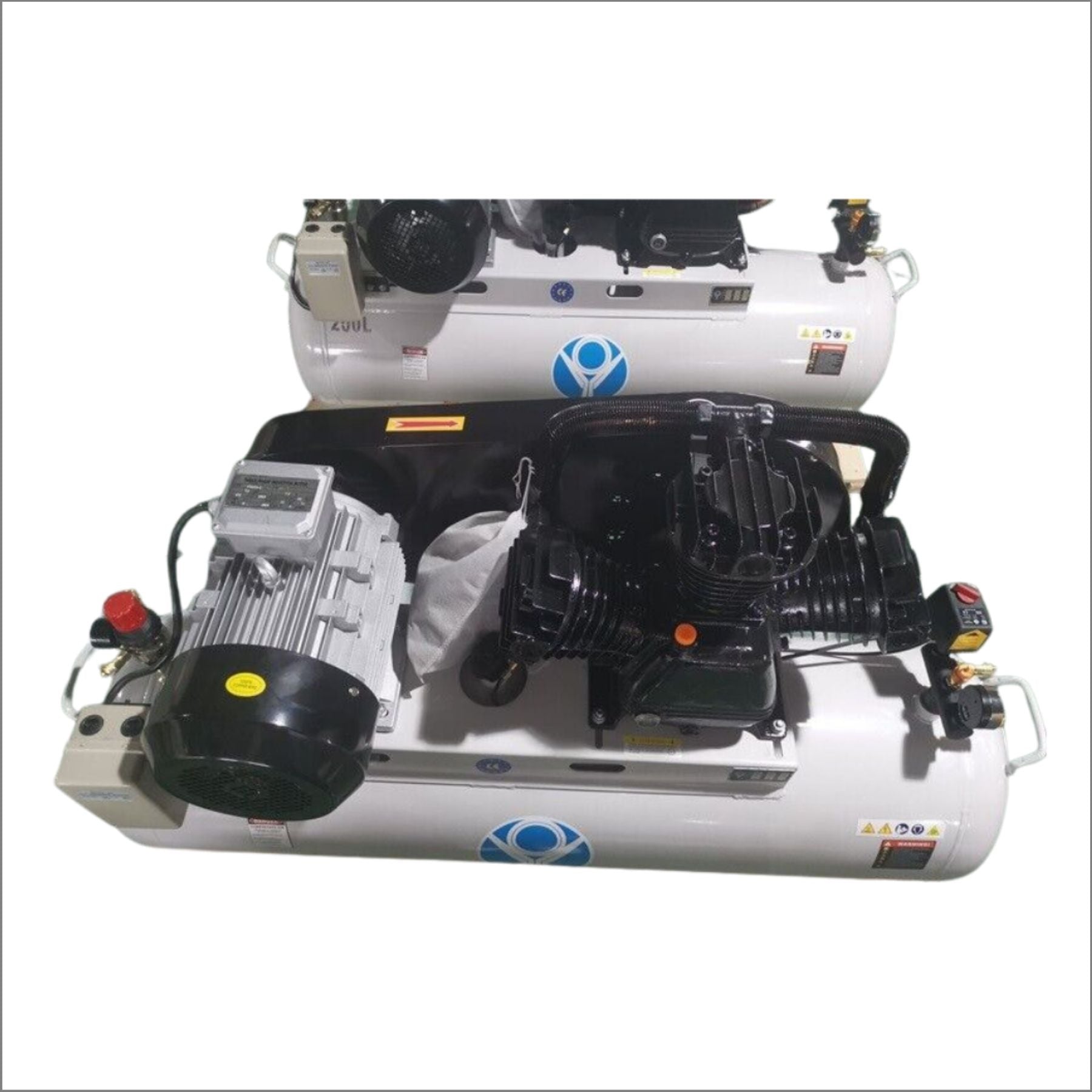

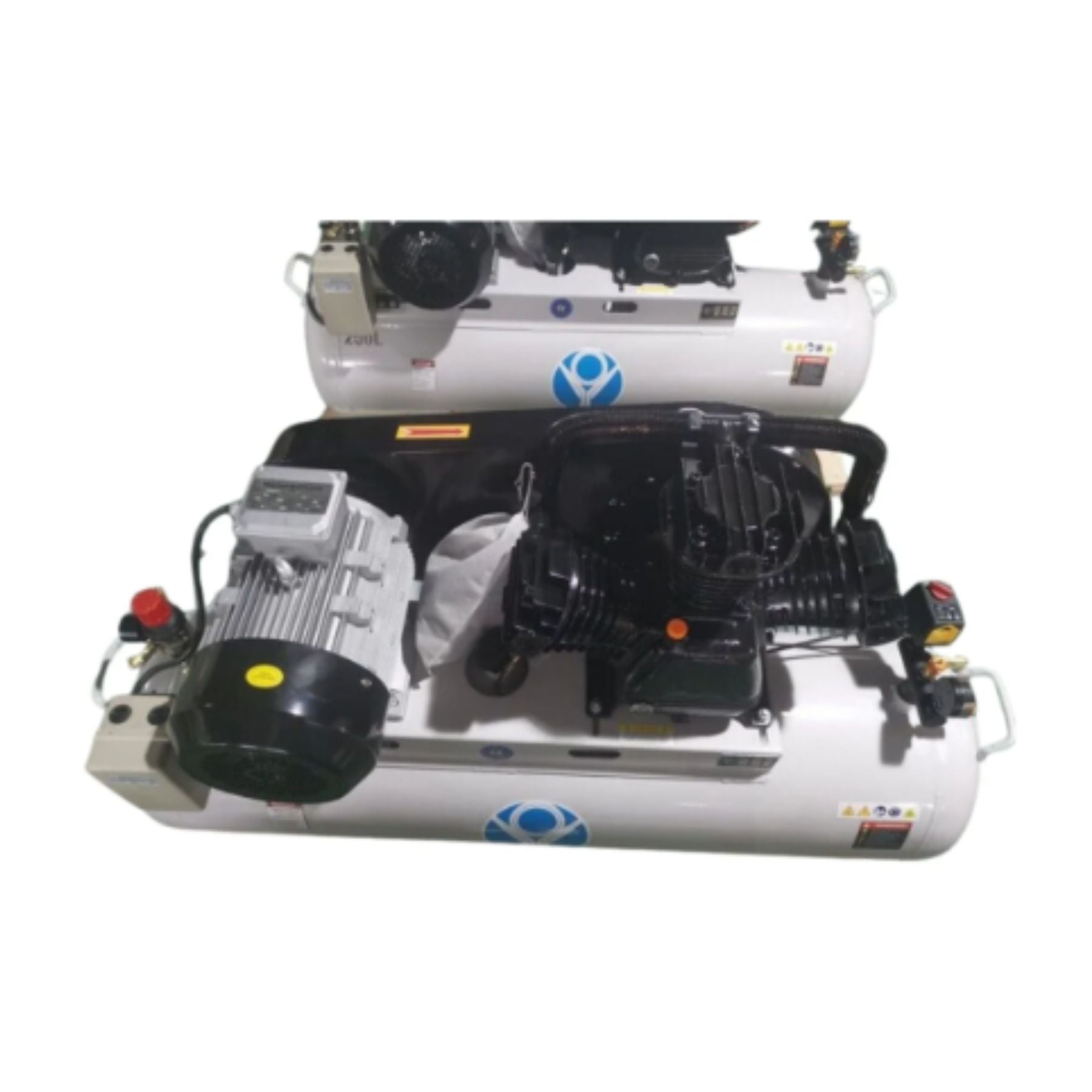

Piston Air Compressor 1100L 40CFM 200L Receiver 415V 7.5KW 10HP 120PSI

Description

• Rated to AS4637
• Heavy duty “close grain” cast iron construction.
• Guarding meets Occupational Health and Safety Standards
• Capacitor start/Capacitor run electric motor
• Full range of spare parts
• Designed for continious Duty
• Large canister intake filters with replaceable filter elements
• Deep fined cast iron cylinders. cooler tubes ensuring superior heat dissipation for higher operating efficiency.
• Aero-dynamically designed fan with large blades for higher air flow
• Two rubber tyred wheels for easy handling and manoeuvrability
• High-efficiency reed valves for maximum performance

Specification

• Pump: VT3090A
• FAD: 1100L/MIN
• Pump drive: Double V section A type belt wheel
• Pump RPM: 1198RPM

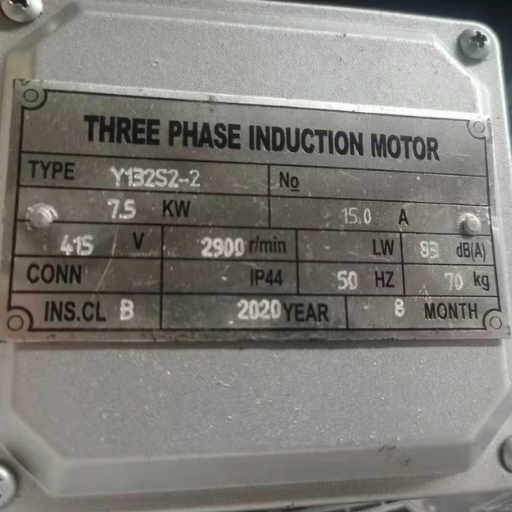

• Motor: 7.5 KW/10HP
• Motor RPM: 2850RPM
• Pressure: 10Bars
• Tank size (L):200
• Includes filter/regulator kit
• Condor MDR1/11 EV1S Pressure Switch installed
• Packaging dimensions: 1510 X 425 X 920
• Gross weight: 280 KG
• Recommended oil; 15W40W
