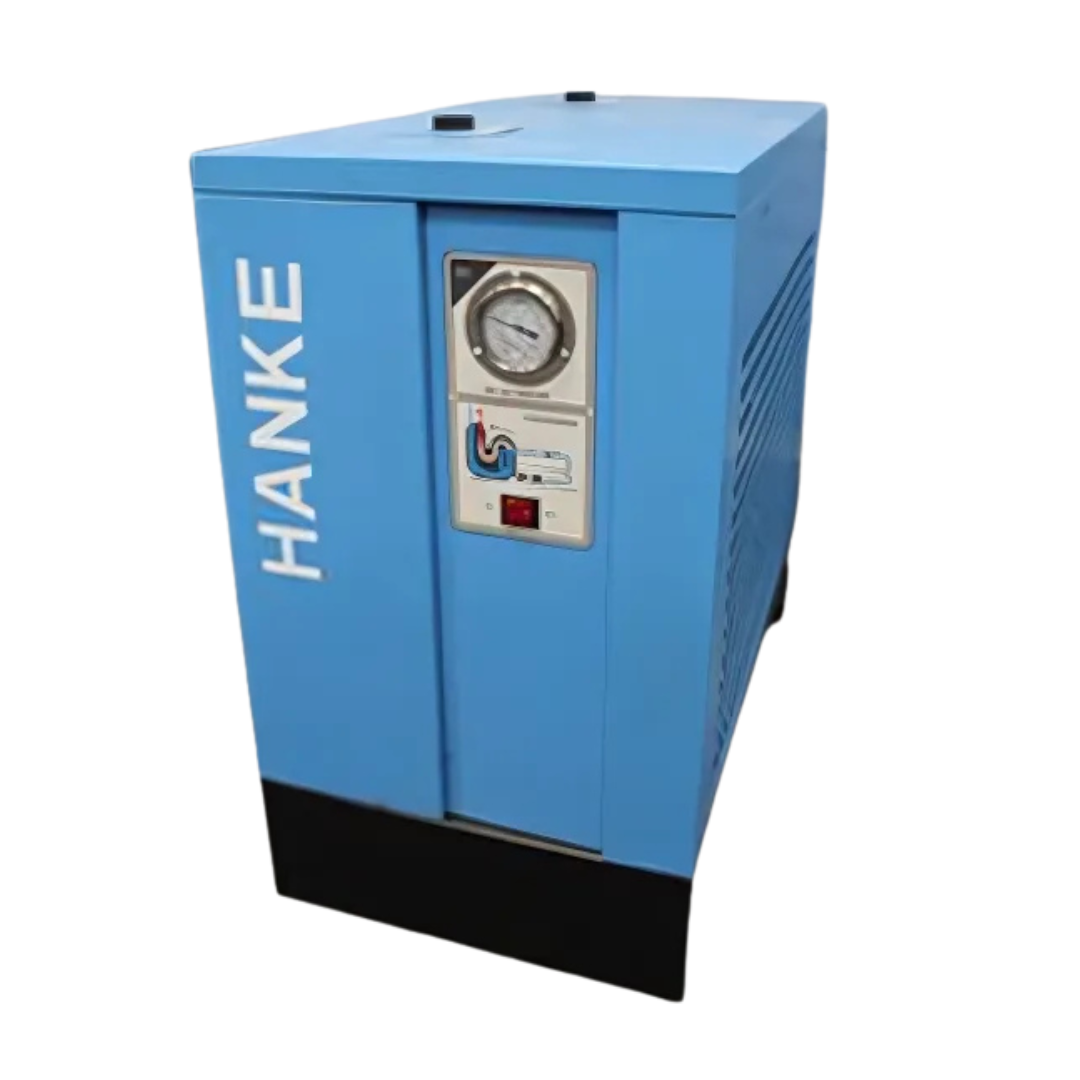

Industrial Refrigerated Air Dryer 386CFM

Optimize your compressed air system with the Refrigerated Air Dryer 386CFM, designed for industrial air compressors, spray booths, powder coating, CNC machining, and sandblasting applications. This high-capacity air dryer effectively eliminates moisture, preventing corrosion, contamination, and costly downtime.

Featuring advanced refrigeration technology, it ensures a steady flow of clean, dry air, improving machine performance and product quality. Whether you're running a manufacturing facility, automotive shop, or construction site, this air dryer keeps your compressed air free from moisture and impurities.

Design Characteristics

• Unique three-in-one plate type heat exchanger design, compact structure, high heat transfer efficiency. Compare to traditional shell tube heat exchanger, unit heat transfer area enlarges 5 to 10 times.
• High strength aluminum alloy and stainless steel design which is small and light.
• Imported refrigerated valve, compressor is Panasonic.
• Economic auto drain.
• Sensitive and reliable instrument control components

Specification:

• Working Pressure: 1.6MPa
• Rated Capacity: 10.8 M3/min
• Refrigerant: R134a
• Max Inlet Temperature: 65°C
• Maximum Ambient Temperature: 35°C
• Pressure Dew Point: 3~10°C
• Voltage: 415V / 3Ph / 50Hz
• Dimension: 950*736*1220
• Net weight: 173 KG
