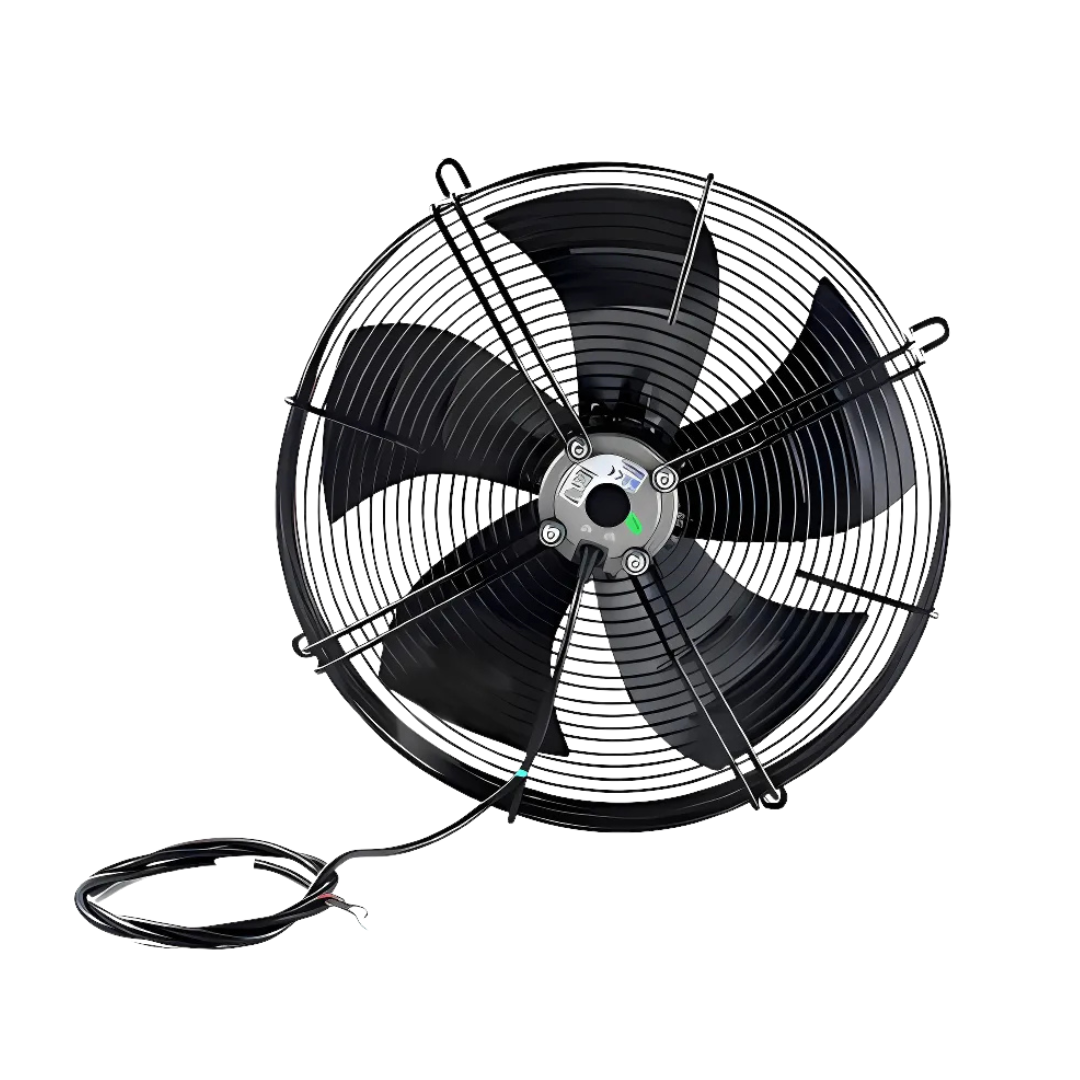

Axial Fan 400mm 1 Phase 240V 1400RPM Suction 4 Pole 180W

400mm Axial Fan 1-Phase 240V 1400rpm Suction 4-Pole 180W – High-Powered Airflow for Cooling and Ventilation

The 400mm axial fan is engineered for optimal airflow efficiency in a variety of cooling and ventilation applications. Operating at a powerful 1400rpm speed and driven by a 180W motor, this fan is designed to deliver high-performance air circulation in industrial and commercial environments. With its 1-phase 240V power and 4-pole suction design, it provides reliable, consistent airflow while maintaining low vibration and noise, ensuring smooth operation even in demanding applications such as HVAC systems, cooling towers, and ventilation ducts.

Specification:

• Motor input power: 180W

• Motor Running Speed:  1400 RPM

• Max Air Flow: 3955M3/H

• Current: 0.82A

• Mode of Operation:  S1

• Insulation Class: F

• Type of Protection: IP54

• Ambient Temp: -30°C – 60°C

• Certification: CCC, CE, UL


Technical specifications

• Voltage type: Single-phase alternating current

• Voltage (V): 220 – 240V

• Frequency (Hz): 50

• Power (W): 180

• Current (A): 0.82

• Rotational speed (RPM): 1380

• Air volume (m³/h): 3850

• Minimum ambient temperature (℃): -30℃

• Maximum ambient temperature (℃): +60℃

• Impeller material: SPCC

• Rotor material: Cast aluminum

• Air outlet direction: Suction/blowing

• Protection level: IP54

• Insulation level: F

• Storage temperature: -40℃/+80℃

• Certification: CCC/CE

• Air volume curve: C
