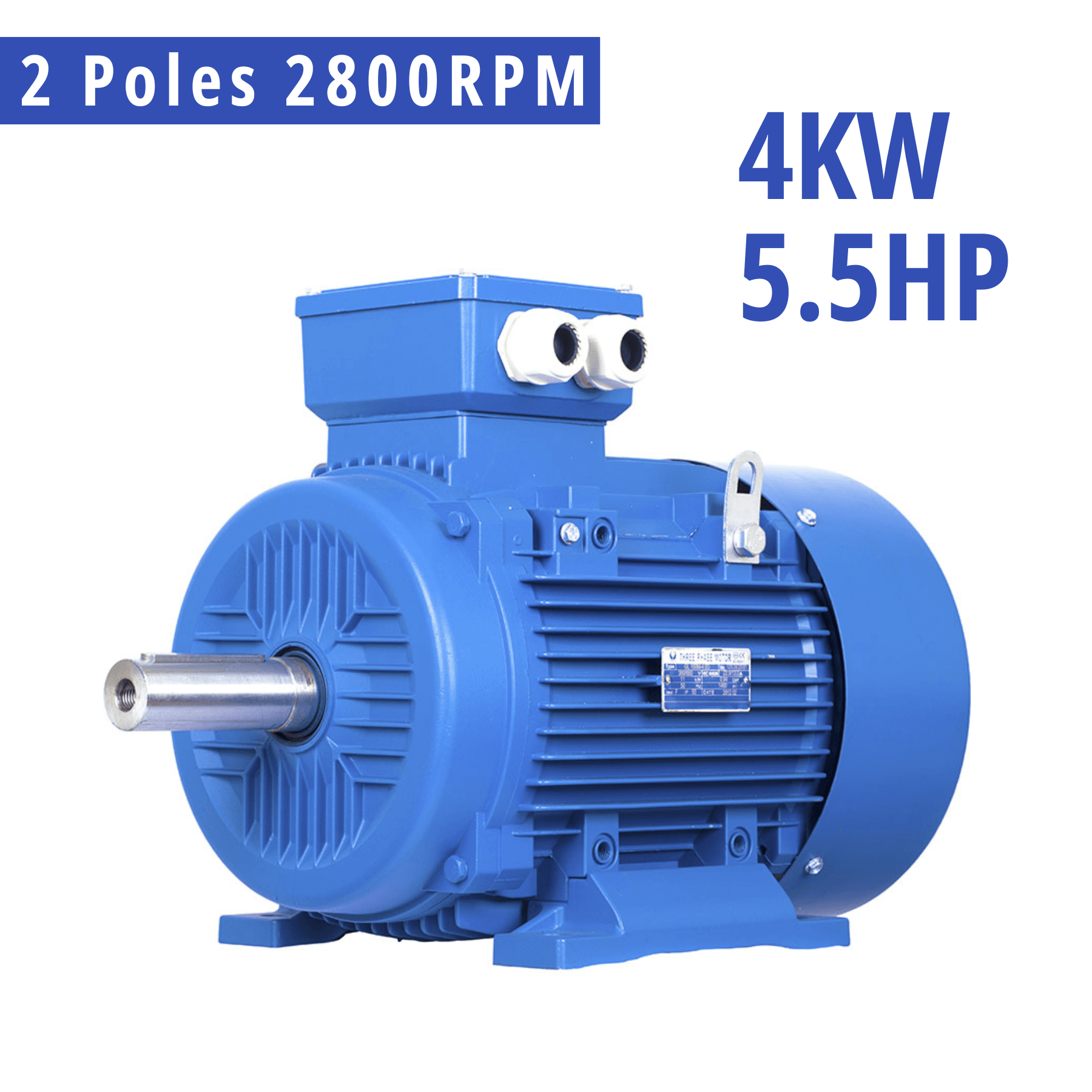

Delivering powerful and efficient performance, the 4kW 5.5HP 3-Phase Induction Motor is designed for high-speed industrial applications. Running at 2800RPM with a 2-pole configuration, this motor features a strong 28mm shaft and supports both 240/415V and 415/720V voltages. Its durable design ensures continuous operation, making it ideal for pumps, fans, conveyors, and other heavy-duty machinery. Built for energy efficiency, reliability, and versatility, it’s a smart choice for industrial and commercial environments.
Specification:
Three-phase: 415v
Type: YX3-112M-2
Voltage: 240V/415V And 415V/720V
Speed: 2 Pole (2800rpm)
Power: 4kw/5.5HP
Shaft size: 28mm
Maximum amperage draws:8A
Light weight
We have single and three-phase electrical motor. ( 0.18kw-315kw ).(2,4,6 and 8 pole)
Technical Parameters:
Full Load Current at rated voltage (V)
380V: 8.0
400V: 7.6
415V: 7.4
Rated Power: 4KW
Full load speed in revolutions per minute: 2900 r/min
Efficiency: 85.8%
Power Factor: 0.88 Cosφ
Direct on line starting torque ration: 2.3
Direct on line starting current ratio: 8.1
Direct on line pull out torque ratio: 2.3
Mean sound pressuer level @1m on no load: 77 LwdB(A)
