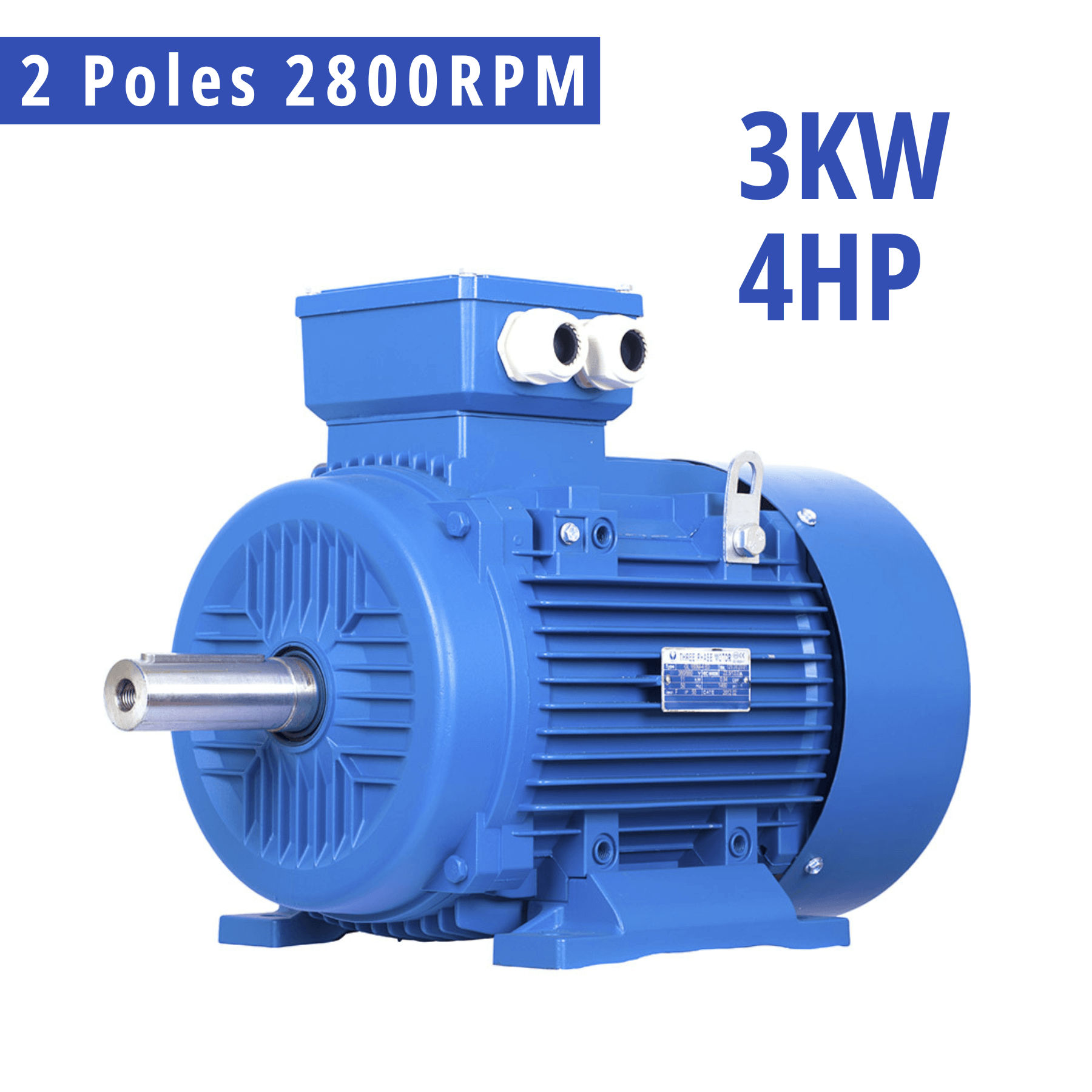

This 3kW 4HP three-phase induction motor offers fast, efficient performance for commercial and industrial applications. With a 2-pole design, it operates at 2800RPM, making it ideal for equipment requiring high rotational speed. The 28mm shaft and 240/415V voltage compatibility ensure flexible installation across various systems. Engineered for durability and continuous operation, this motor is suited for use in fans, pumps, and other machinery.
Specification:
Three-phase: 415v
Voltage: 240V/415V
Speed: 2 Pole (2800rpm)
Power: 3kw/4HP
Shaft size: 28mm
Maximum amperage draws:6.2A
Light weight
Technical Parameters:
Full Load Current at rated voltage (V)
380V: 6.2
400V: 5.9
415V: 5.7
Rated Power: 3KW
Full load speed in revolutions per minute: 2800 r/min
Efficiency: 84.6%
Power Factor: 0.87 Cosφ
Direct on line starting torque ration: 2.2
Direct on line starting current ratio: 7.8
Direct on line pull out torque ratio: 2.3
Mean sound pressuer level @1m on no load: 74 LwdB(A)
