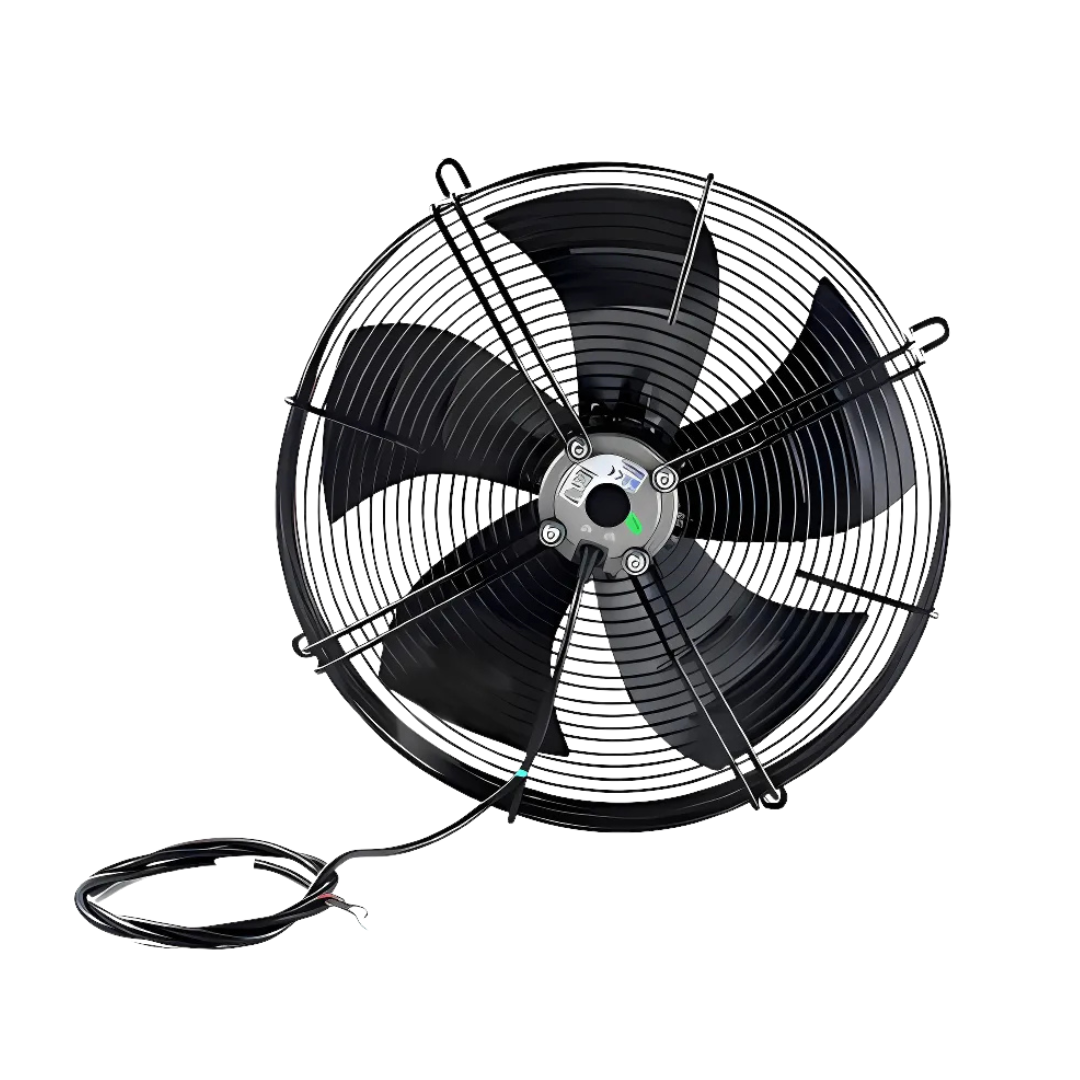

3 Phase 415V 1000RPM Suction 6 Pole 150W Axial Fan 450mm

450mm Axial Fan 3-Phase 415V 1000RPM Suction 6-Pole 150W – High-Efficiency Industrial Airflow for Cooling and Ventilation

The 450mm axial fan is designed for reliable, high-efficiency airflow in demanding industrial environments. With a 150W motor and a speed of 1000rpm, this fan delivers consistent and powerful airflow, making it ideal for cooling, ventilation, and air circulation applications. Powered by 3-phase 415V electrical systems, it ensures energy-efficient, stable operation for large-scale applications. The 6-pole suction design maximizes airflow while maintaining low noise and vibration, making it perfect for cooling towers, HVAC systems, and industrial ventilation systems.

Specification:

• Motor input power: 150W

• Motor Running Speed:  900 RPM

• Max Air Flow: 4270M3/H

• Current: 0.40A

• Mode of Operation:  S1

• Insulation Class: F

• Type of Protection: IP54

• Ambient Temp: -30°C – 60°C

• Certification: CCC, CE, UL

Technical specifications

• Voltage type: Three-phase alternating current

• Voltage (V): 380 – 480V

• Frequency (Hz): 50/60

• Power (W): 150/165

• Current (A): 0.40/0.38

• Rotational speed (RPM): 900/1000

• Air volume (m³/h): 4044/4618

• Minimum ambient temperature (℃): -30℃

• Maximum ambient temperature (℃): +60℃

• Impeller material: SPCC

• Rotor material: Cast aluminum

• Air outlet direction: Suction/blowing

• Protection level: IP54

• Insulation level: F

• Storage temperature: -40℃/+80℃

• Certification: CCC/CE/UL

• Air volume curve: K/L
