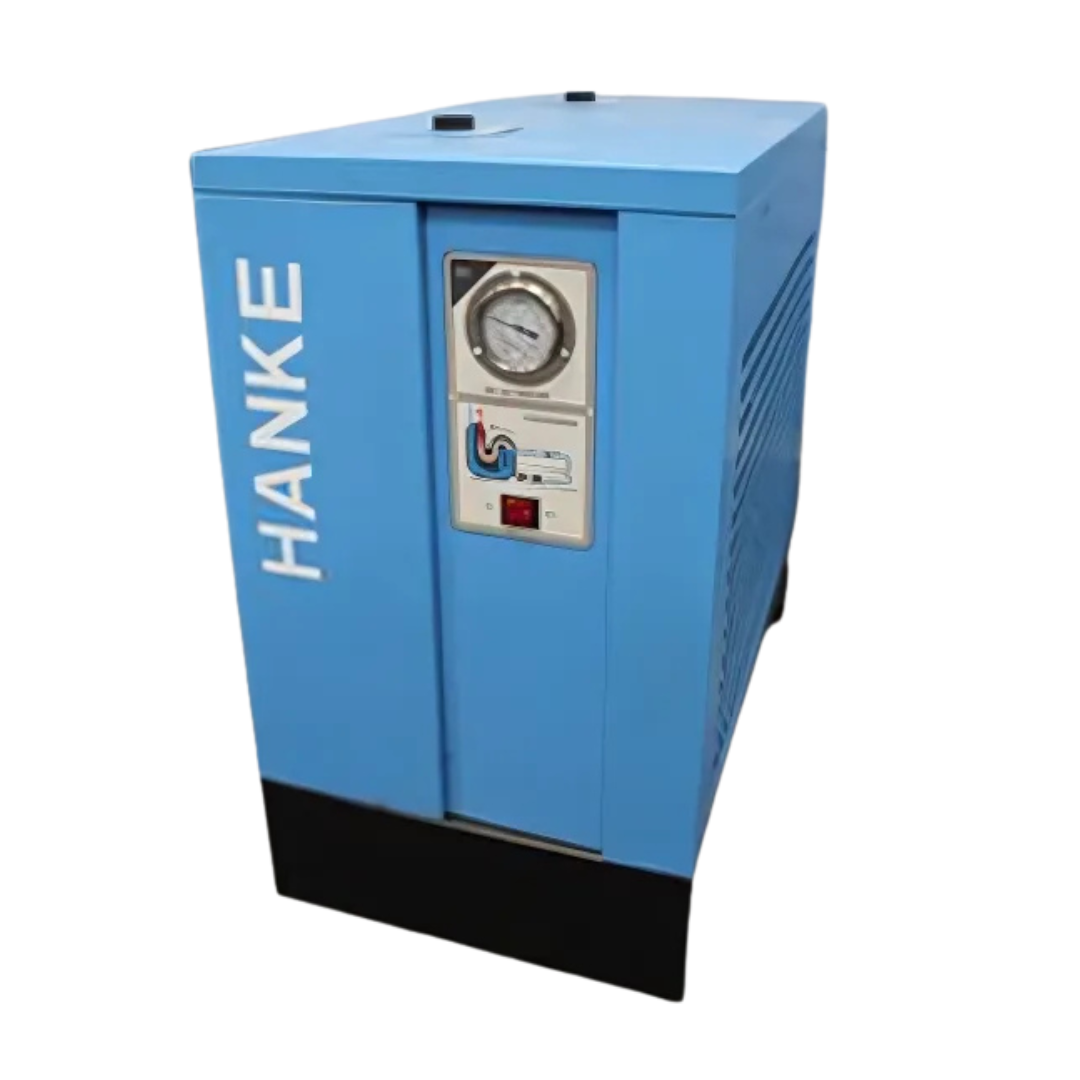

28 CFM Refrigerated Air Dryer & Air Compressor Combo for Spray Painting CNC Powder Coating & Sandblasting

Ensure Optimal Performance with the 28 CFM Refrigerated Air Dryer & Air Compressor Combo

Get the perfect combination of moisture control and reliable air compression with our 28 CFM Refrigerated Air Dryer & Air Compressor Combo. Designed for industries such as spray painting, CNC machining, powder coating, and sandblasting, this combo keeps your equipment protected from rust and corrosion, delivering clean, dry air for every operation.

Design Characteristics

• Unique three-in-one plate type heat exchanger design, compact structure, high heat transfer efficiency. Compare to traditional shell tube heat exchanger, unit heat transfer area enlarges 5 to 10 times.
• High strength aluminum alloy and stainless steel design which is small and light.
• Imported refrigerated valve, compressor is Panasonic.
• Economic auto drain.
• Sensitive and reliable instrument control components

Specification:

• Working Pressure: 1.6MPa
• Rated Capacity: 0.8 M3/min
• Refrigerant: R134a
• Max Inlet Temperature: 65°C
• Maximum Ambient Temperature: 35°C
• Pressure Dew Point: 3~10°C
• Voltage: 240V / 1Ph / 50Hz
• Dimension: 400*680*710
• Net weight: 37KG
