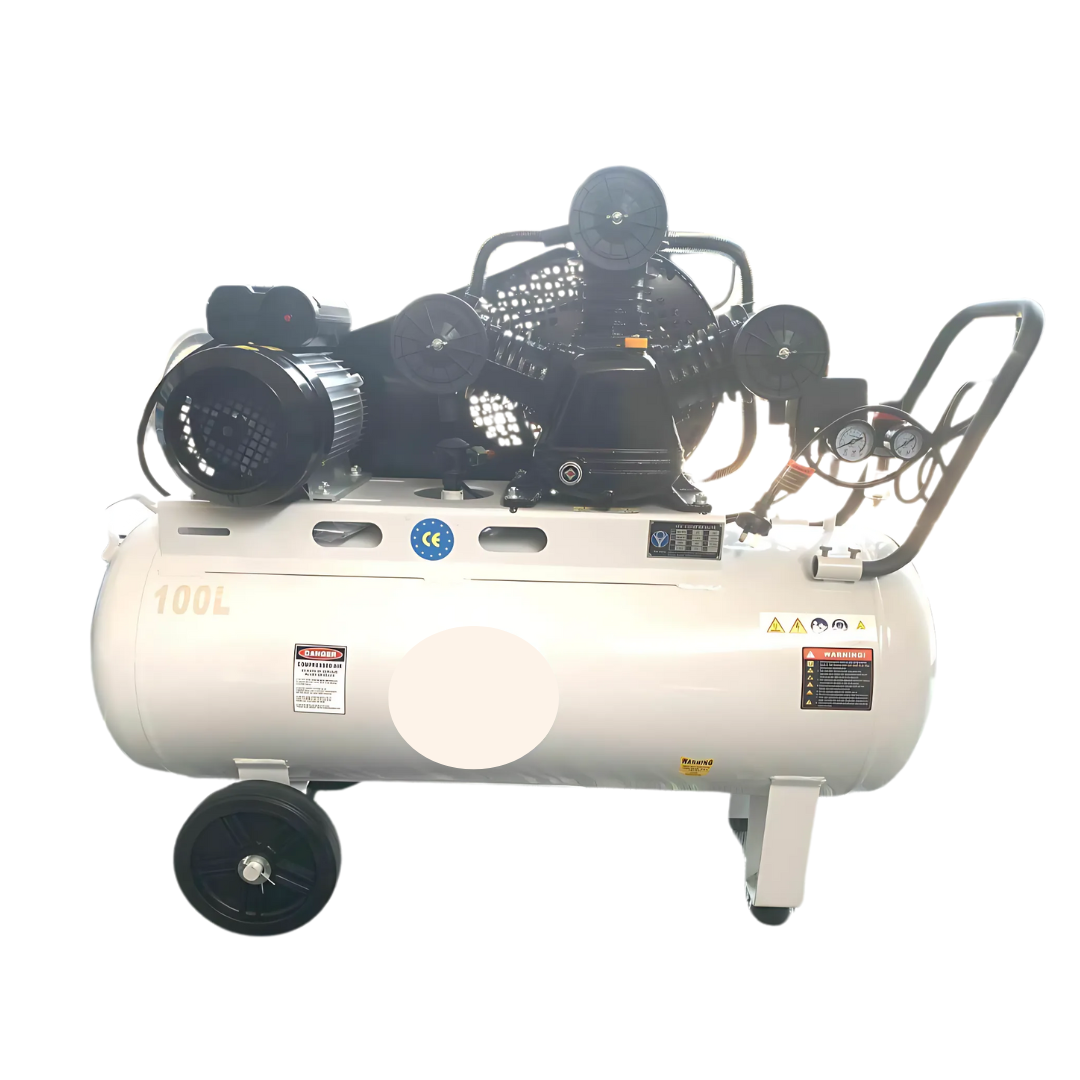

240V 12CFM 100L Tank Air Compressor 2.2KW/3HP 120PSI Single Piston for Heavy Duty Use

Description

Efficient 240V Air Compressor – 100L Tank, 12CFM, 120PSI is powered by a 2.2KW/3HP motor, this high-performance air compressor is perfect for heavy-duty tasks and ensures consistent, reliable output.

• Rated to AS4637
• Heavy duty “close grain” cast iron construction.
• Guarding meets Occupational Health and Safety Standards
• Capacitor start/Capacitor run electric motor
• Full range of spare parts
• Designed for continious Duty
• Large canister intake filters with replaceable filter elements
• Deep fined cast iron cylinders. cooler tubes ensuring superior heat dissipation for higher operating efficiency.
• Aero-dynamically designed fan with large blades for higher air flow
• Two rubber tyred wheels for easy handling and manoeuvrability
• High-efficiency reed valves for maximum performance

Specification

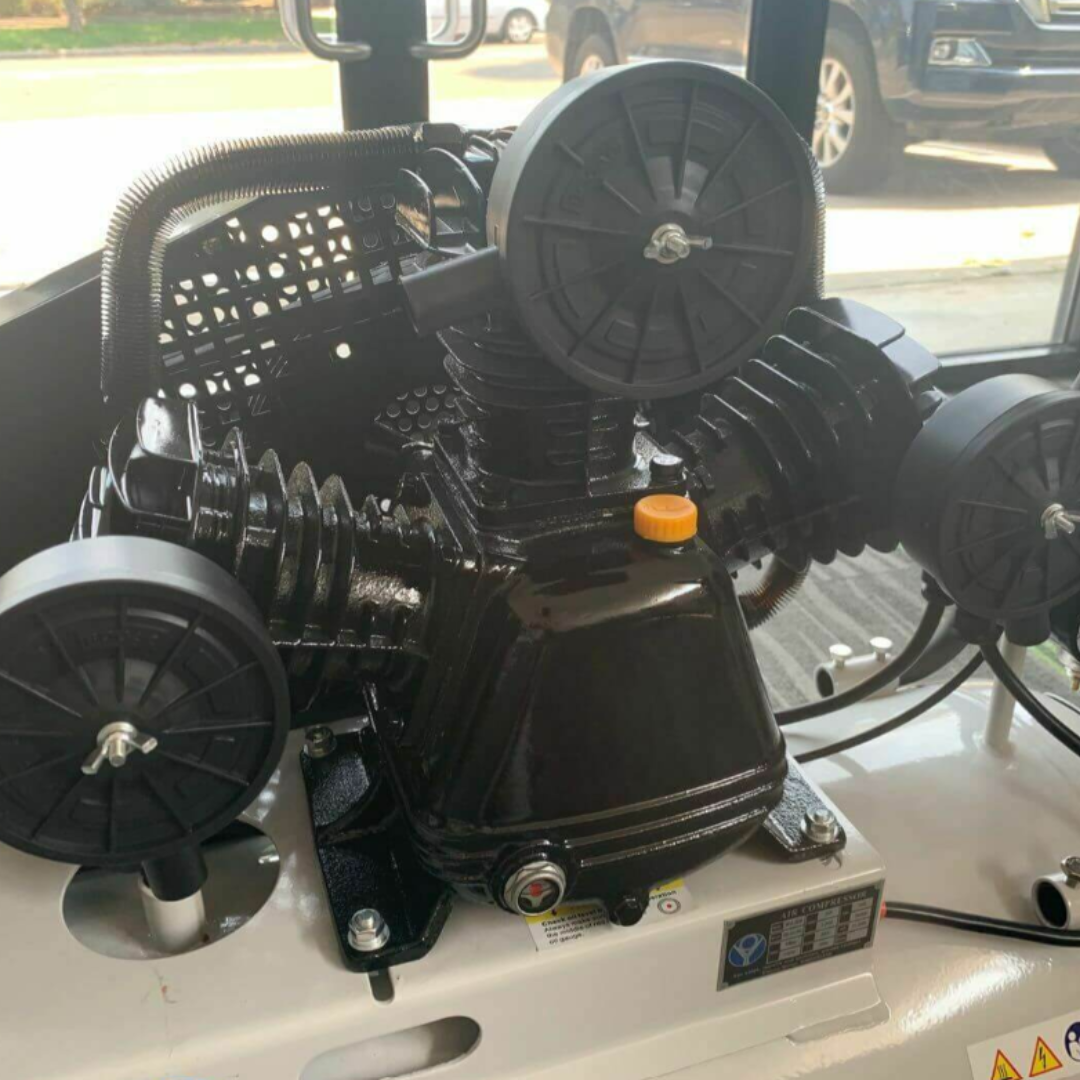

• Pump: VT3065A
• Cylinder: 65X3
• FAD: 342L/MIN
• Air receiver, conforming to Australian standards – AS1210
• Pump drive: Double V section A type belt wheel
• Pump RPM: 1010RPM
• Motor: 2.2 KW/3HP
• Motor RPM: 2850RPM
• Pressure: 120 PSI / 8Bars
• Tank size (L):100

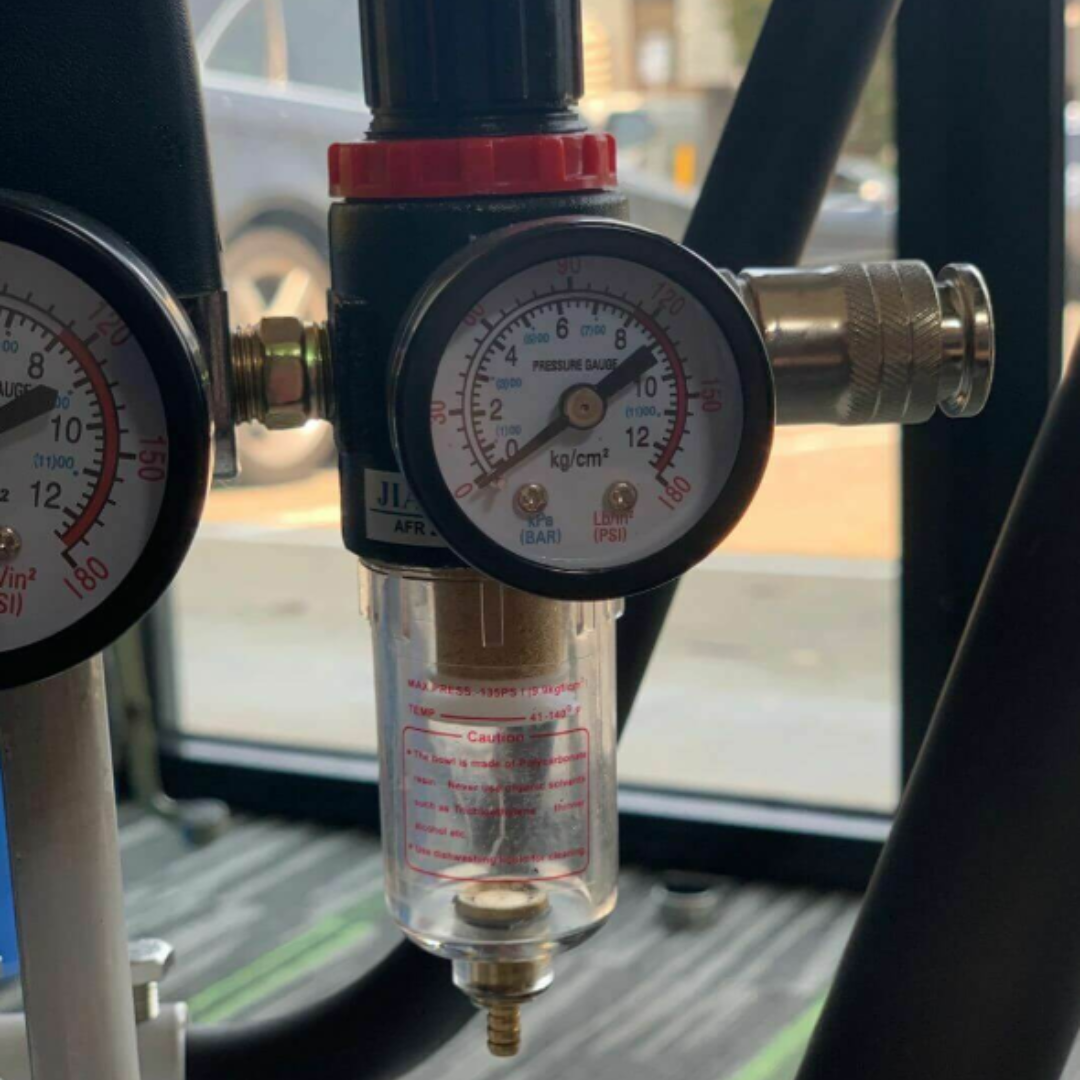

• Includes filter/regulator kit

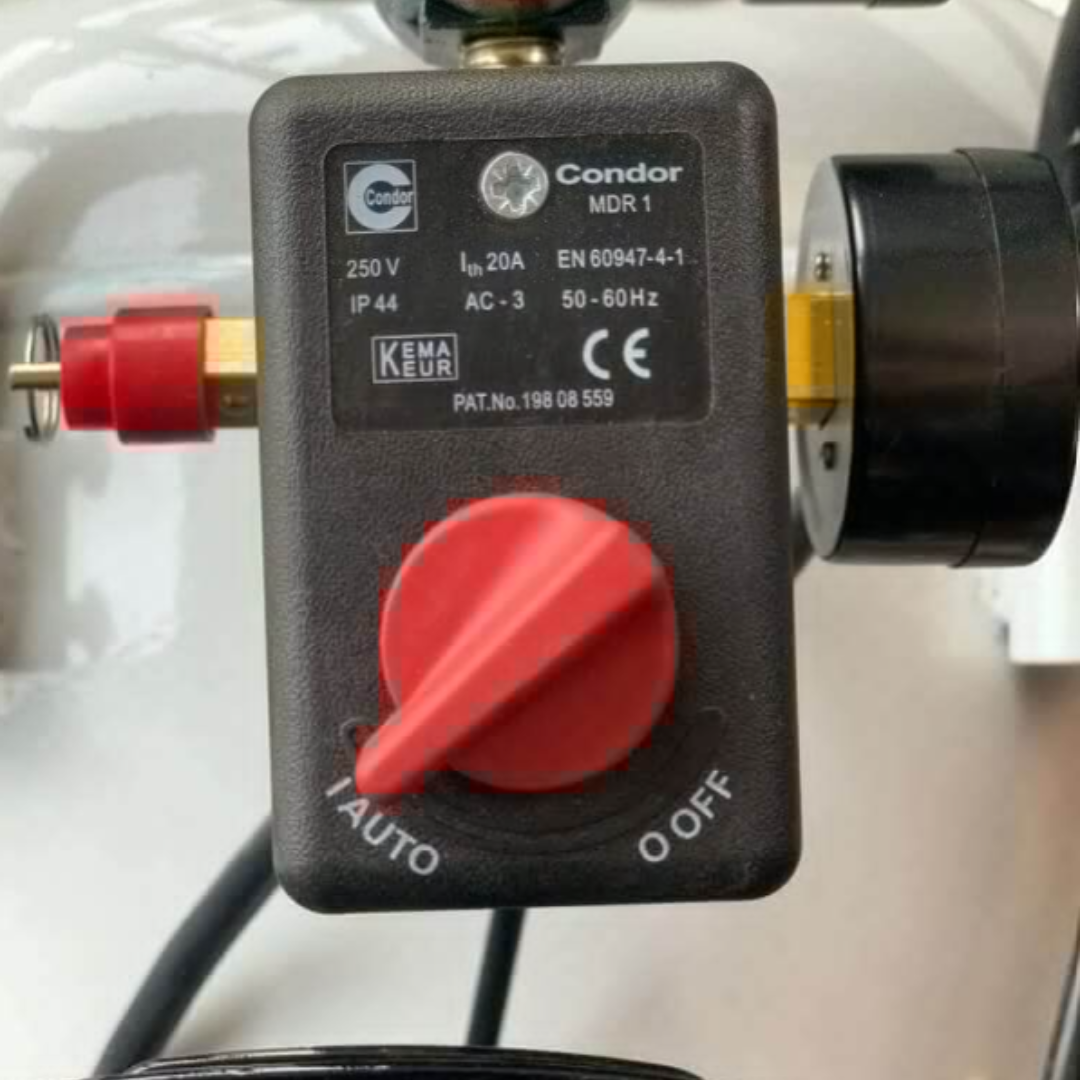

• Condor MDR1/11 EV1S Pressure Switch installed
• Packaging dimensions: 1125 X 425 X 920
• Gross weight: 125 KG
• Recommended oil; 15W40W
• Power Source: Corded Electric
• Item Length: 1125
• Lubrication Type: Oil-Lubricated
• Item Weight: 110KG
• Voltage: 240 V
• Horse Power: 2.2KW/3HP
• Maximum Working Pressure: 8 BARS
• Flow Rate: 301-500 L/min
• Item Height: 920
• Item Width: 425
• Tank Material: Cast Iron
• Tank Capacity: 100 L
• Set Includes: Condor Pressure Switch, Filter Regulator, Manual Drain Valve, Oil Sight Glass, Pressure Gauge, Pressure Safety Valve
