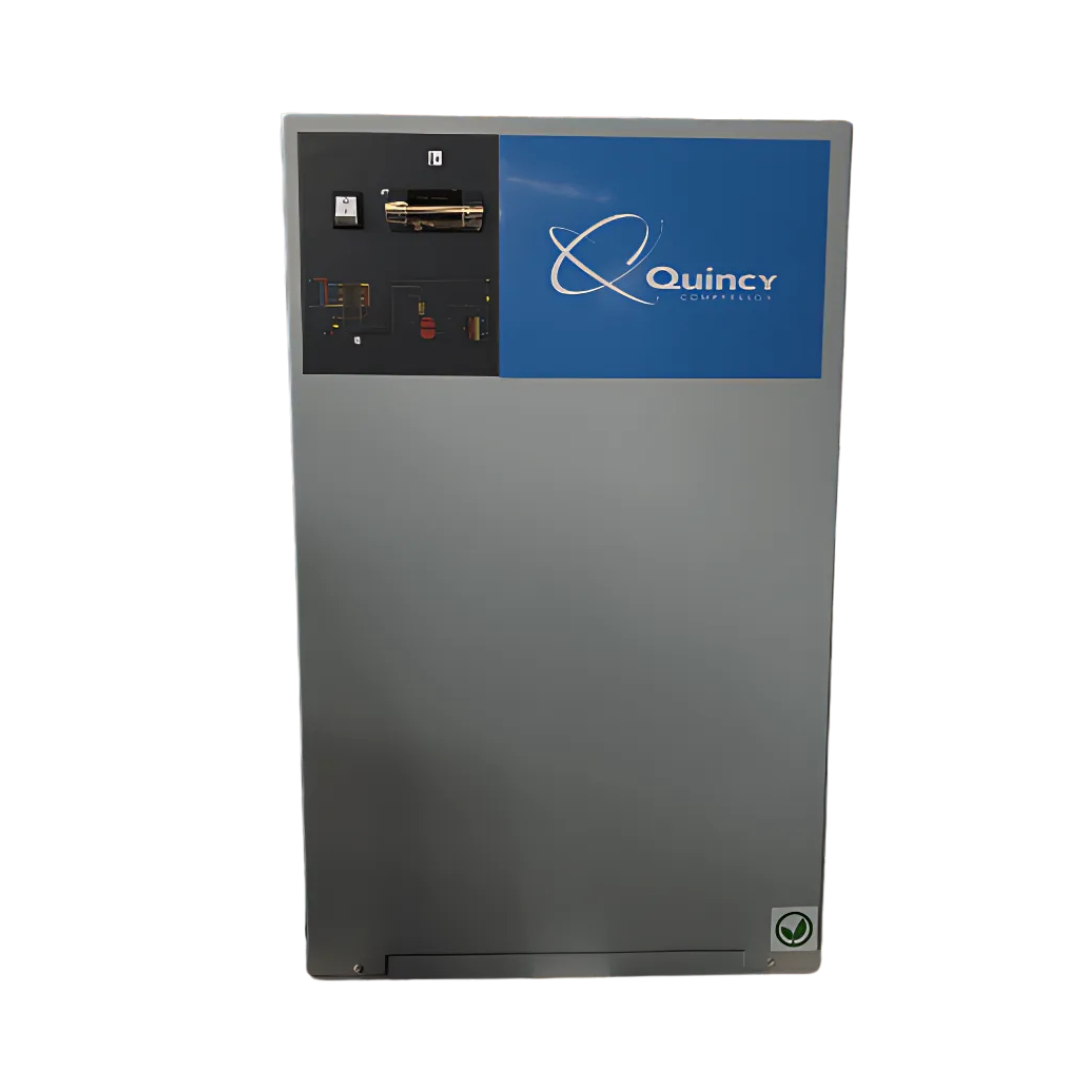

233 CFM Air Dryer Moisture Removal for Spray Painting & CNC Machines

Ensure your spray painting and CNC operations run smoothly with this 233 CFM Air Dryer. Designed to remove harmful moisture from compressed air, it helps protect your equipment and ensures high-quality results. Perfect for industrial environments, this air dryer improves the performance and longevity of both spray painting projects and CNC machinery, while maintaining a constant, reliable air flow.

Design Characteristics

• Unique three-in-one plate type heat exchanger design, compact structure, high heat transfer efficiency. Compare to traditional shell tube heat exchanger, unit heat transfer area enlarges 5 to 10 times.
• High strength aluminum alloy and stainless steel design which is small and light.
• Imported refrigerated valve, compressor is Panasonic.
• Economic auto drain.
• Sensitive and reliable instrument control components

Specification:

• Working Pressure: 0.7-1.3MPa
• Rated Capacity: 6.6 M3/min
• Refrigerant: R134a
• Max Inlet Temperature: 50°C
• Maximum Ambient Temperature: 35°C
• Pressure Dew Point: 3~10°C
• Voltage: 230V / 1Ph / 50Hz
• Dimension: 520*500*809
• Net weight: 60KG
