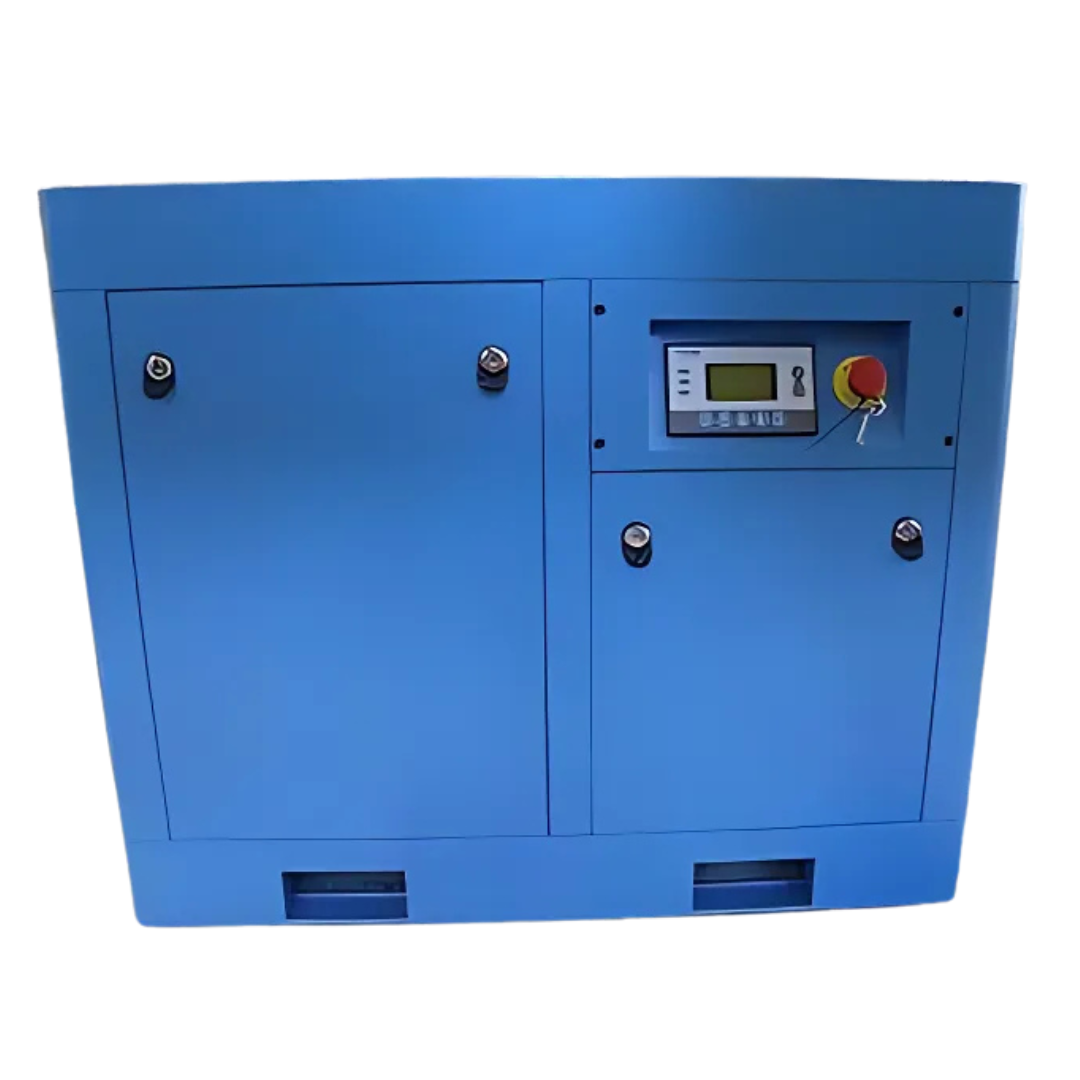

15KW 20HP Rotary Screw Compressor 120PSI 415V 82CFM

This 15KW 20HP Rotary Screw Compressor offers 82 CFM at 120 PSI, delivering powerful and consistent airflow. With a 415V power system, it features low-maintenance operation, energy efficiency, and long-term reliability.

• POWER: 15KW
• SPEED: 2950RPM
• VOLTAGE: 415V
• FAD: 82CFM
• FREQUENCY: 50HZ
• MAX-PRES: 0.8MPA

Main Features:

Main components of the unit are all chosen strictly accordance with international standards AP1619

1. Air End

• The third generation American asymmetric rotor technology
• Processed with KAPP Grinding Machine imported from German which make it has the character of high efficiency and low consumption.
• Long service life by using large rotors and extra large SK bearings

2. Efficient Intake Valve

• Big caliber and lower pressure drop
• improving the stability of the system.
• Ensuring to control the capacity efficiently at the phase of boot operating and stop.

3. Special Lubricating Oil for Screw Compressor.

• Specially made for screw compressors.
• Good performance for cooling and lubricating as well as the long service
• Maintain viscosity stability under low or high temperature.


4. Air Inlet Filter System

• Machined by Germany special original equipment
• Adopt the filter paper with foreign famous brand.
• Maximum reduce the noise of air inlet by lengthening the pipeline.


5. Main Motor

• Specific motor of domestic well known brand is selected for screw air compressor.
• Equipped with SKF bearings. IP54 and F class
• Low noise with long service life.



6. Cooling System

• Equipped with SKF heavy-duty bearings, low rotor speed, low noise.
• Lower discharge temperature (5-15°C higher than ambient temperature)
• Stronger environmental suitability (-10°C-45°C).


7. Oil-Gas Separation System

• Integration design increase the filtering efficiency
• Low oil content (ppm) in discharged air reduce the loss of lubricating oil

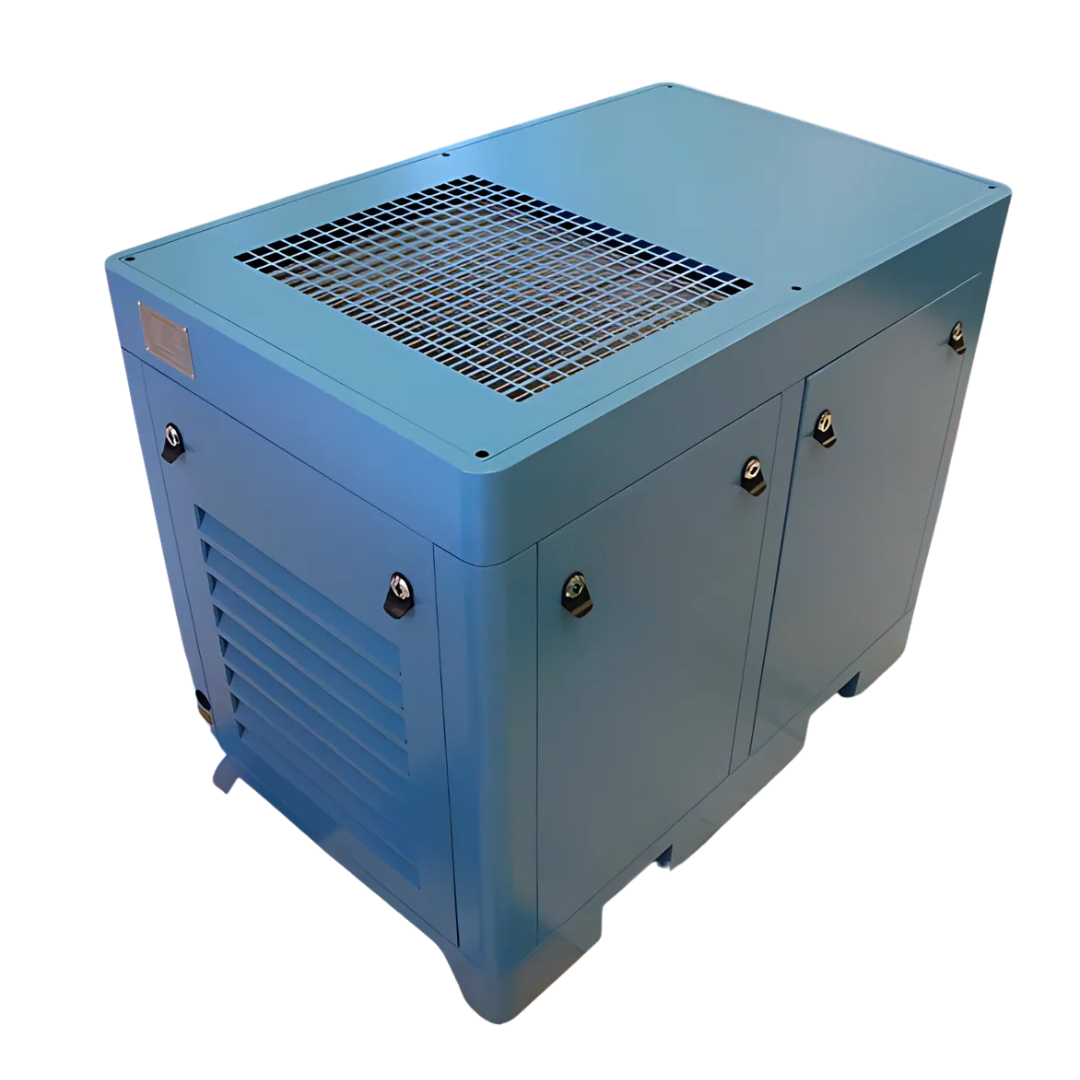

8. Cabinet

• All closed sound insulation design. installing with no foundation reducing the internal dust effectively as well as mute and environmental protection.



9. Control System

• Variable frequency control system improve the stability of discharge pressure and reduce the consumption
• Control the operating frequency of converter and adjust the loading automatically.
• Adopt the safe and reliable control elements with the world-famous brand

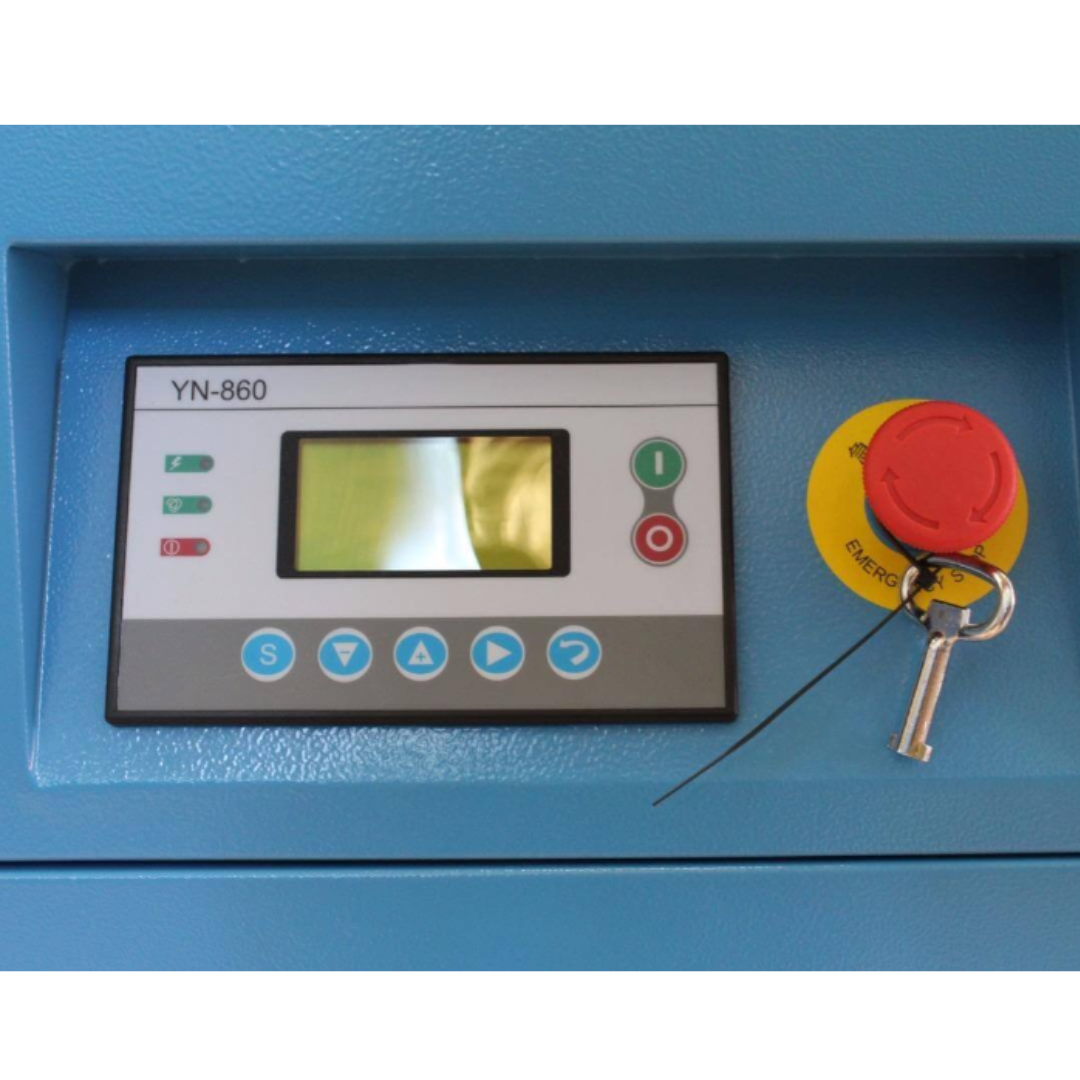

• Using LCD microcomputer controller which is easy to operate, check and maintenance
• Four types of control mode: automatic control manual control, multiple linkage control and remote operation control

Directly Driven Screw Air Compressors

• Power KW: 15
• Capacity M³/min: 2.2
• Discharge Pressure Mpa: 0.8
• Cooling Method: Air Cooling
• Driven: Directly Driven
• Starting System: Y-▲ Convertor
• Measure(mm):

  • Length: 1050
  • Width: 650
  • Height: 850
• N.G. kg: 300
• Noise dB (A):  66±2
• Power KW: 37
• Air Outlet: G3/4
