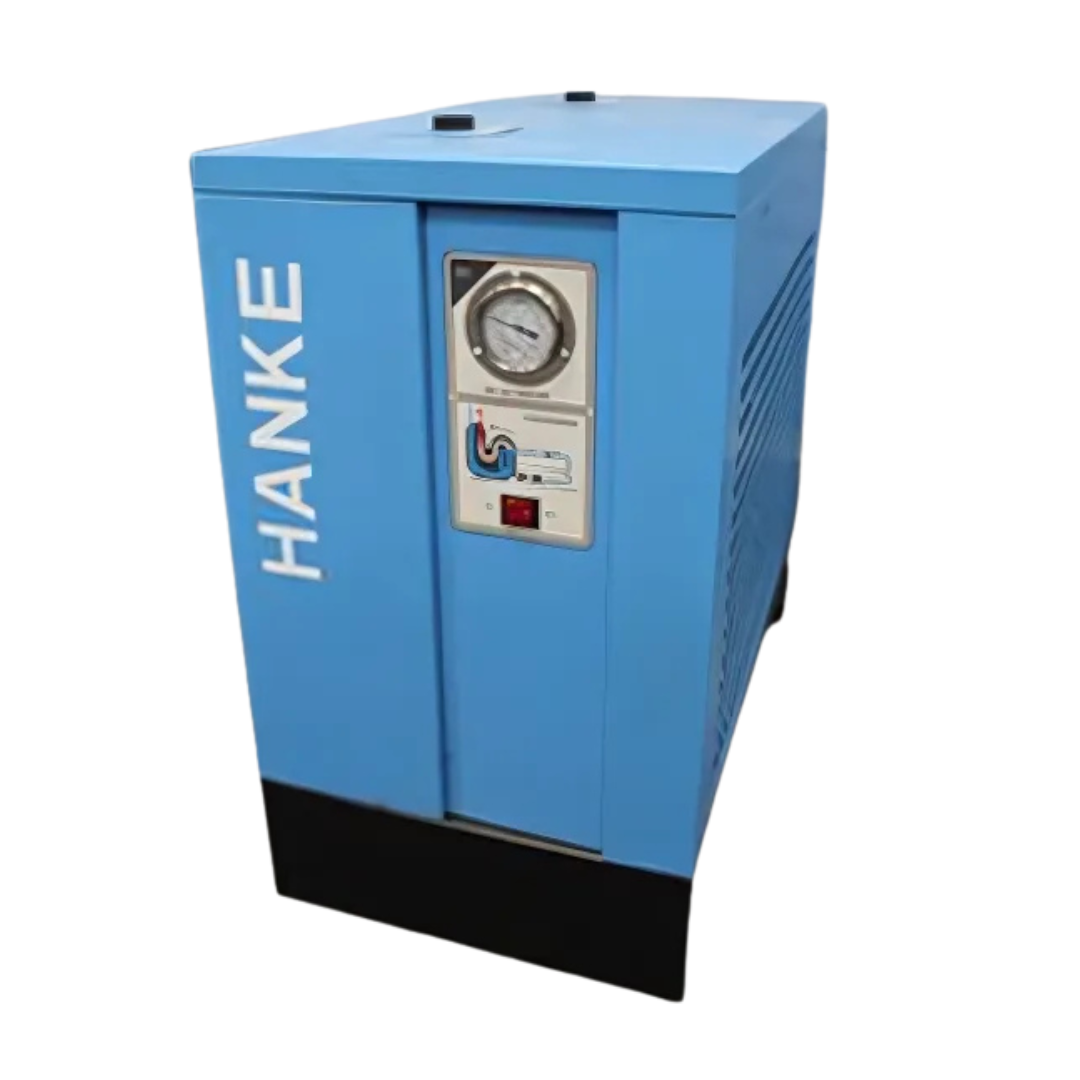

142 CFM Compressed Air Dryer Moisture Removal for Spray Painting & CNC Machines

Ensure optimal air quality and protect your equipment with the 142 CFM Compressed Air Dryer. This high-performance air dryer efficiently removes moisture and contaminants from compressed air, making it ideal for industrial applications like spray painting and CNC machinery. With a 142 CFM airflow capacity, it provides consistent, moisture-free air, preventing damage and ensuring better results in your operations.

Design Characteristics

• Unique three-in-one plate type heat exchanger design, compact structure, high heat transfer efficiency. Compare to traditional shell tube heat exchanger, unit heat transfer area enlarges 5 to 10 times.
• High strength aluminum alloy and stainless steel design which is small and light.
• Imported refrigerated valve, compressor is Panasonic.
• Economic auto drain.
• Sensitive and reliable instrument control components

Specification:

• Working Pressure: 1.6MPa
• Rated Capacity: 5.2 M3/min
• Refrigerant: R134a
• Max Inlet Temperature: 65°C
• Maximum Ambient Temperature: 35°C
• Pressure Dew Point: 3~10°C
• Voltage: 240V / 1Ph / 50Hz
• Dimension: 800*654*1132
• Net weight: 105KG
