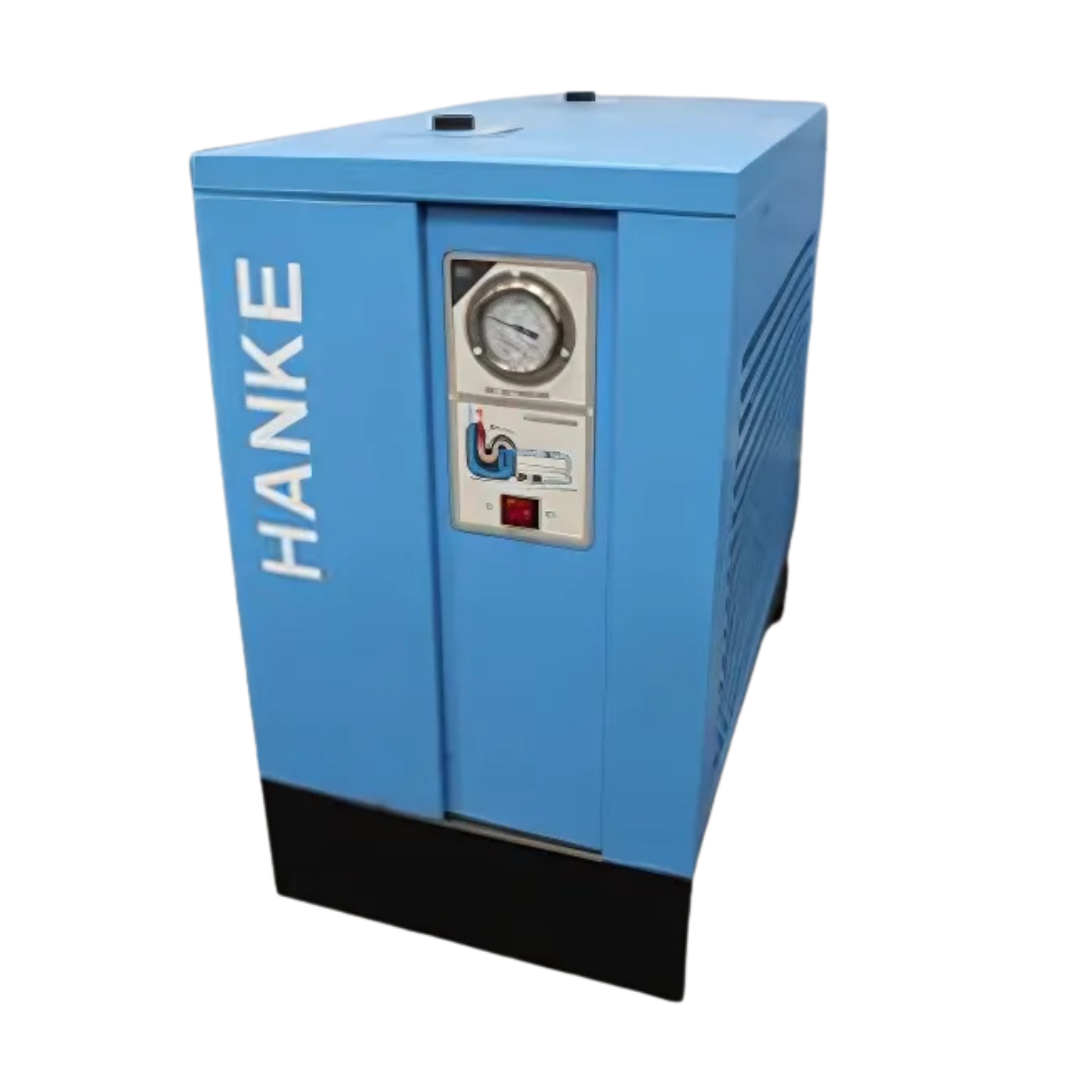

106 CFM Industrial Refrigerated Air Dryer Moisture Control for Spray Painting & CNC

Protect your equipment and ensure flawless results with the 106 CFM Industrial Refrigerated Air Dryer. Engineered for spray painting, powder coating, sandblasting, and CNC applications, this air dryer removes harmful moisture and impurities from compressed air. With a capacity of 106 CFM, it delivers dry, clean air to prevent rust, corrosion, and other moisture-related issues. This industrial-grade dryer is essential for improving equipment longevity and producing high-quality finishes, making it a valuable addition to any production facility.

Design Characteristics

• Unique three-in-one plate type heat exchanger design, compact structure, high heat transfer efficiency. Compare to traditional shell tube heat exchanger, unit heat transfer area enlarges 5 to 10 times.
• High strength aluminum alloy and stainless steel design which is small and light.
• Imported refrigerated valve, compressor is Panasonic.
• Economic auto drain.
• Sensitive and reliable instrument control components

Specification:

• Working Pressure: 1.6MPa
• Rated Capacity: 3 M3/min
• Refrigerant: R134a
• Max Inlet Temperature: 65°C
• Maximum Ambient Temperature: 35°C
• Pressure Dew Point: 3~10°C
• Voltage: 240V / 1Ph / 50Hz
• Dimension: 765*450*550
• Net weight: 52KG
