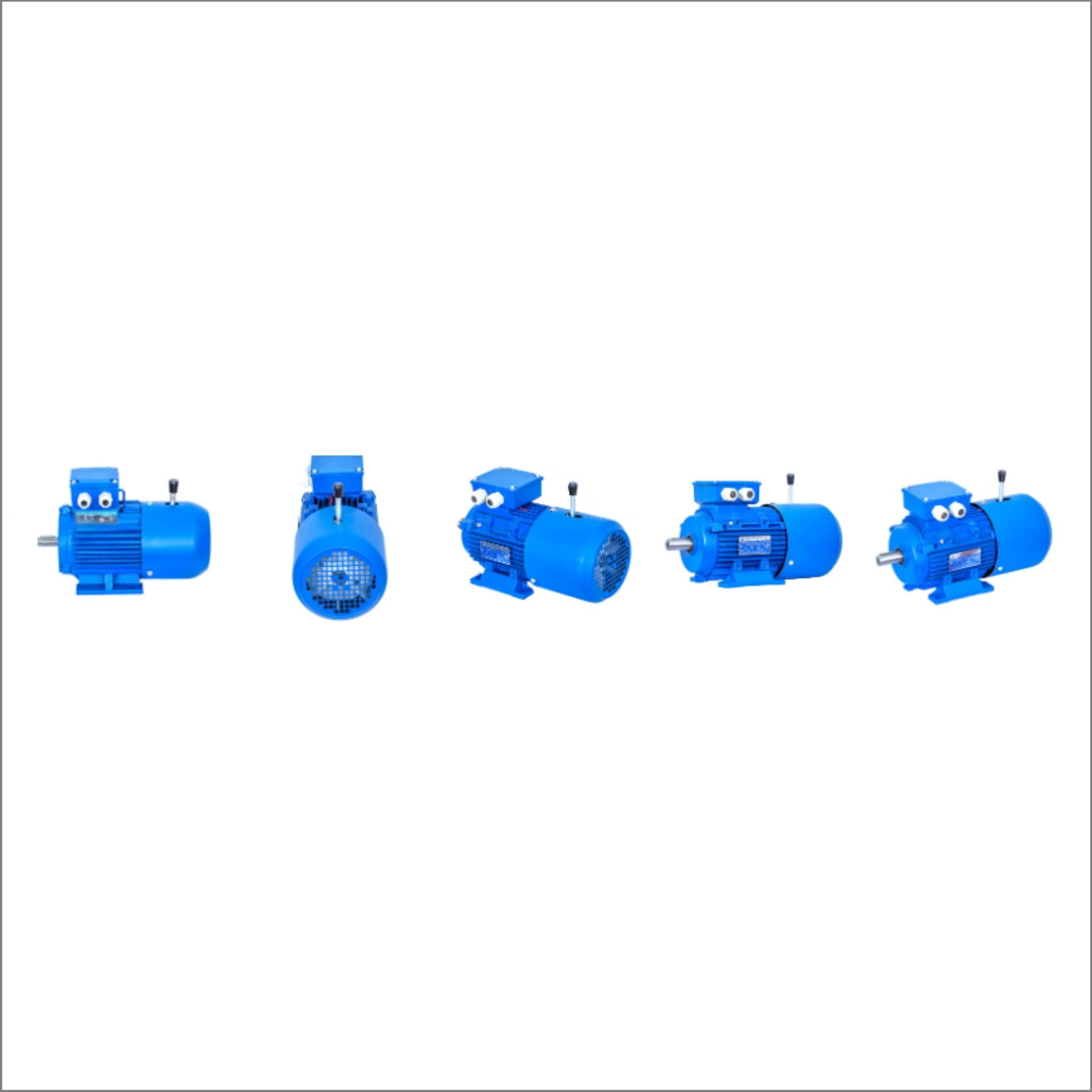

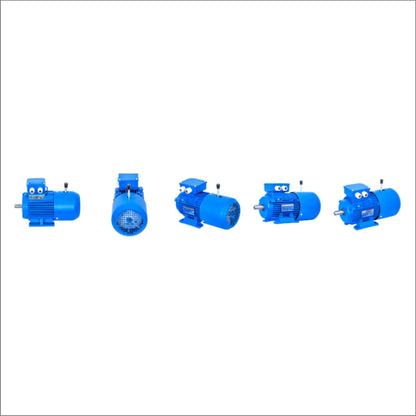

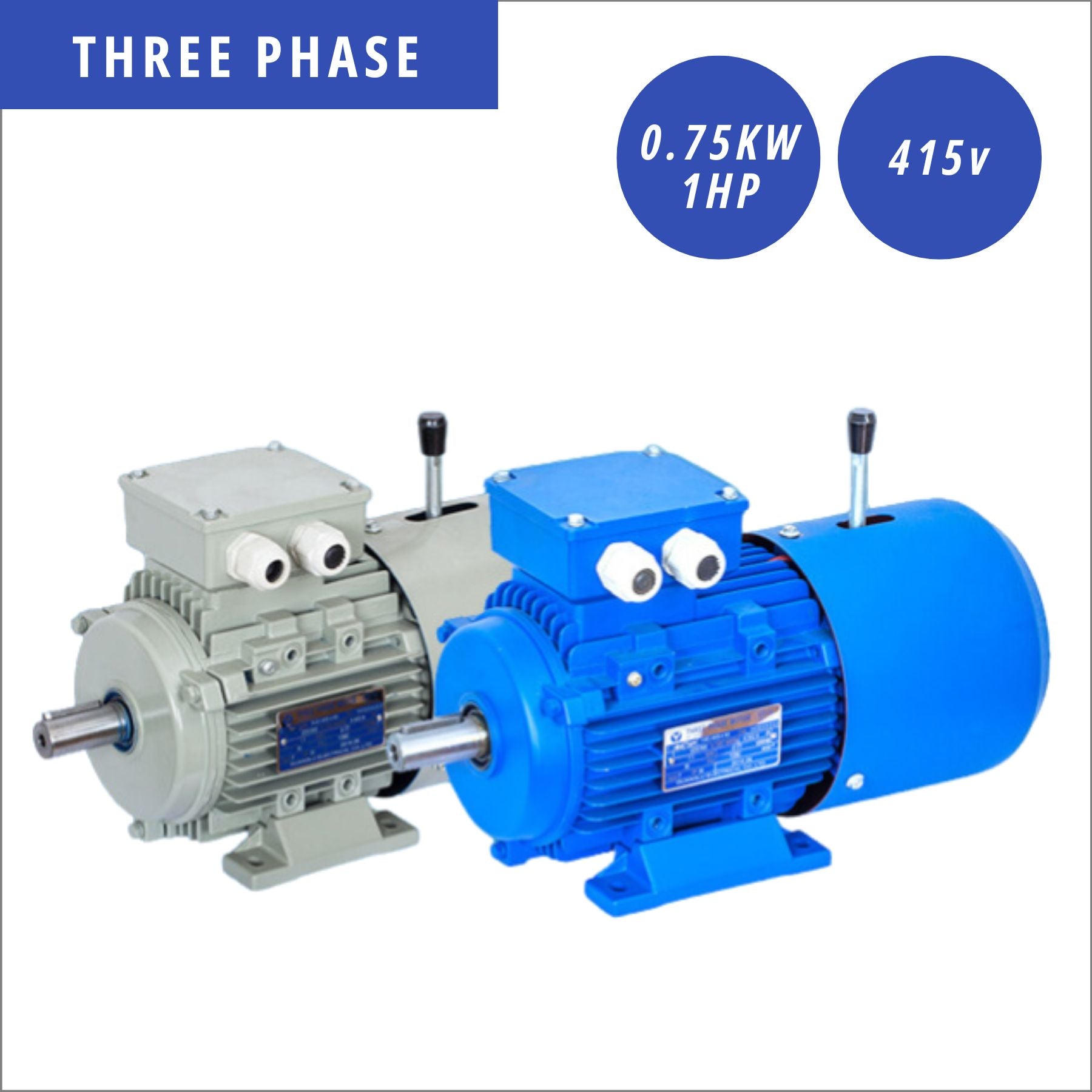

0.75kw 1hp Brake Motor Three Phase 415v

Description:

• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Modified Item: Yes
• Full Load Amps: 2.6
• Current Type: AC
• Actual Rated Input Voltage: 415V
• Insulation Class: F (Max 155°C)
• Mounting Type: Base-Mounted, Flange-Mounted
• Rated Load (HP): 1HP
• Reversible/Non-Reversible: Reversible
• Base RPM: 1400RPM
• AC Motor Type: Induction/Asynchronous
• Rated Load (kW): 0.75KW
• Inverter/Vector Duty Rating: Inverter Duty
• AC Frequency Rating: 50/60 Hz
• AC Phase: Three Phase
• IEC Frame Size: 80
• Rated/Full-Load Torque: 6.21N.M
• Shaft Diameter: 19MM
• IP Rating: IP55
• Nominal Rated Input Voltage: 415V
• Shaft Type: Keyed
• Three-phase: 240/415V
• Type: Y3EJ-802-4（TYPE 80）
• Speed: 4 Pole (1400rpm)
• Power: 0.75kw / 1HP
• Shaft size: 19mm
• Light weight
• Aluminium Alloy
